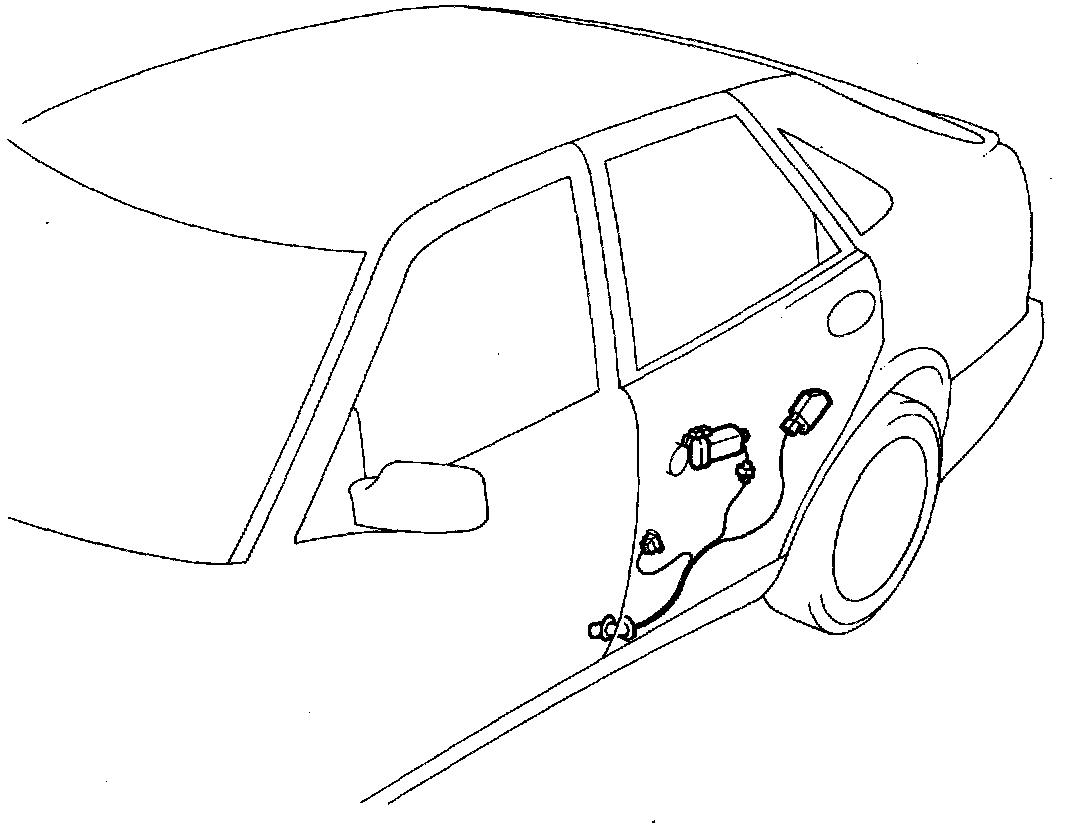

Replacement of Wiring In Rear Door

1 Remove the door trim.
2 Remove the cover from the lower part of the forward edge of the front door.
Press out the cover from inside the door.
3 Unplug all connectors in the rear door and pull out the wiring.
4 Remove the rubber grommet at the bottom of the B pillar.
5 Unplug the 10-pin connector in the B pillar.
6 Install the new wiring. Check the marking, cable codes and color coding of the connectors carefully against the wiring diagrams.


NOTE: Fix the wiring properly so that no knocking, rattling or other unwanted noise occurs when the car is being driven.


Install the trim in reverse order.
