Diagnostics: Diagnostic Trouble Codes

Here follow two examples of how to obtain readings of diagnostic trouble codes and clear diagnostic trouble codes.

^ Example 1: Read DTC Information

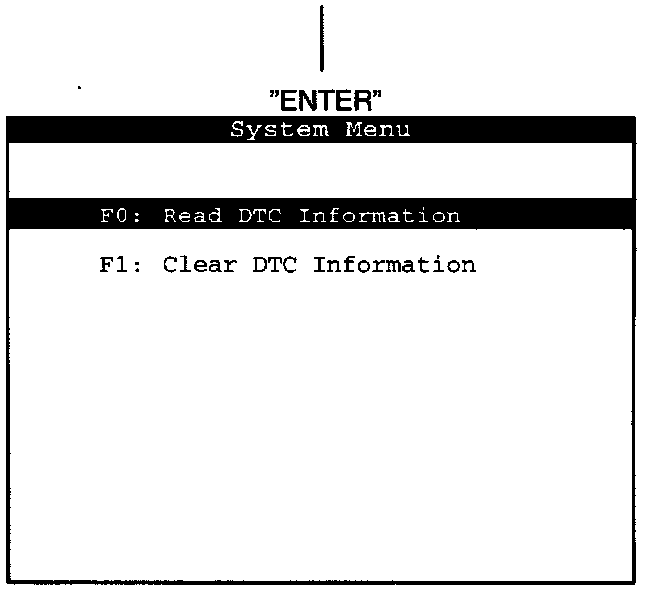

Select diagnostic trouble codes in the system menu.





Select "F0".

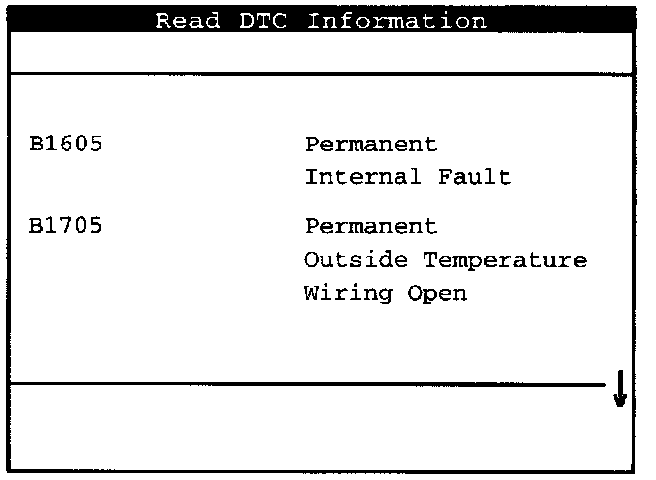

Presented here are the diagnostic trouble codes that are saved in the control module's memory.

There is room for a maximum of 3 diagnostic trouble codes in the display. If there are more than three diagnostic trouble codes, up or down arrows will be shown in the upper and lower part of the display. In such case, press the corresponding selection key to see the other trouble codes.





^ Example 2: Clear DTC Information
Select "Diagnostic Trouble Codes" in the Application Menu.

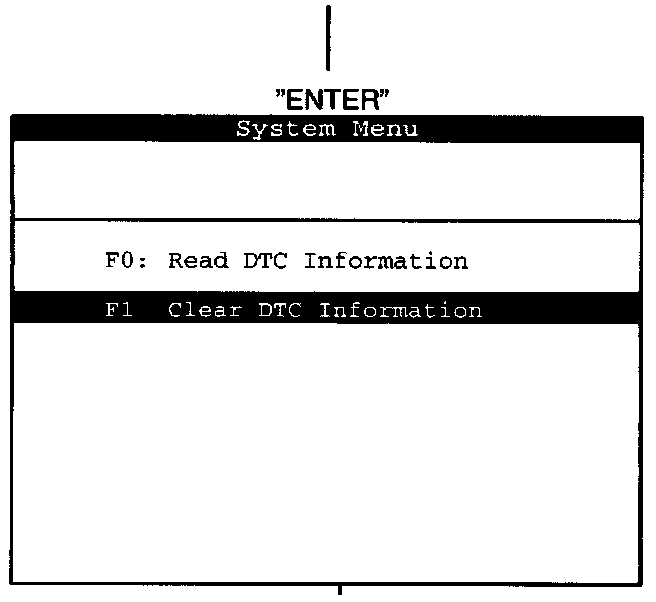

Select "F1 Clear DTC Information" in the System Menu.

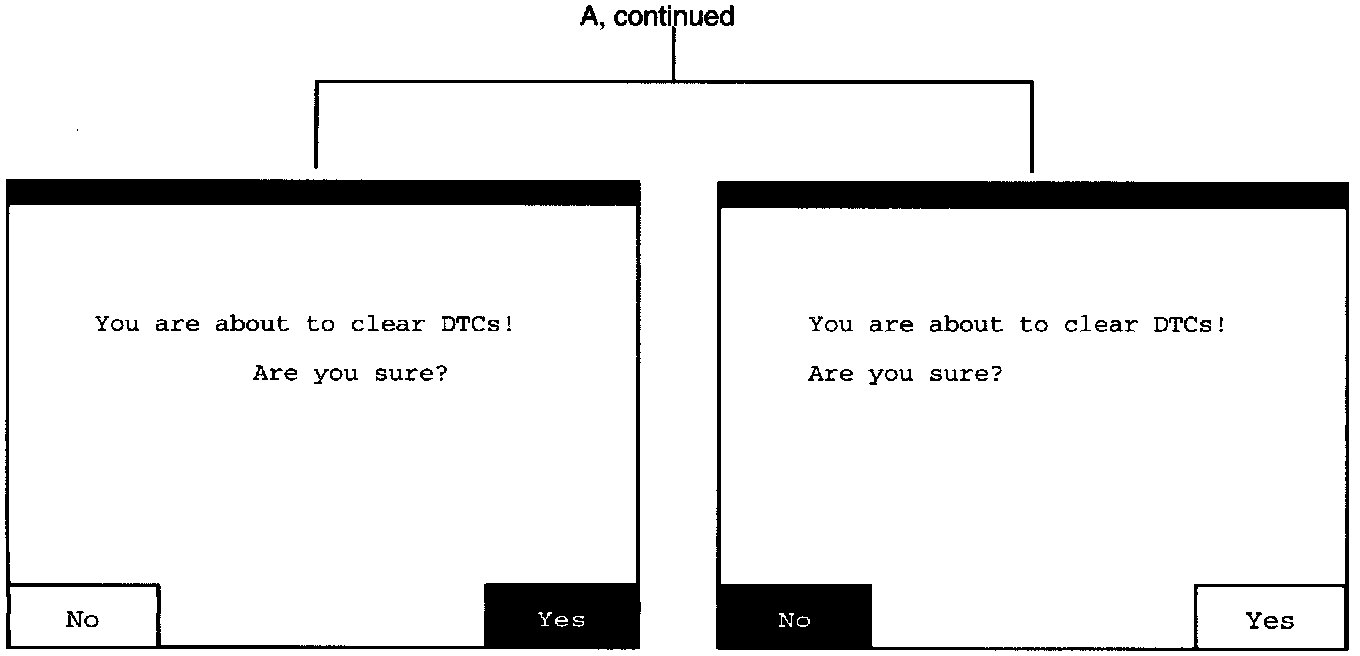

Select YES or NO

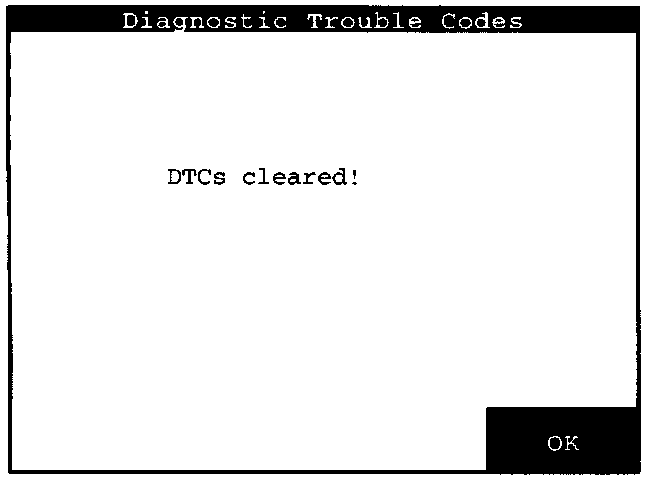

"YES"

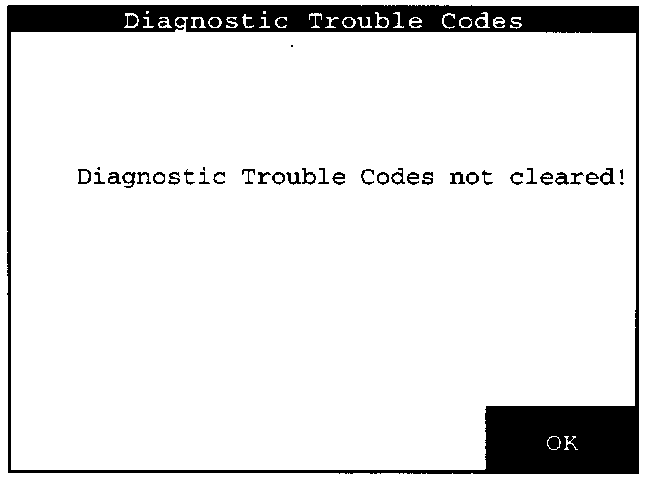

"NO"
