System Overview, Electric Powered Passenger Seat Front

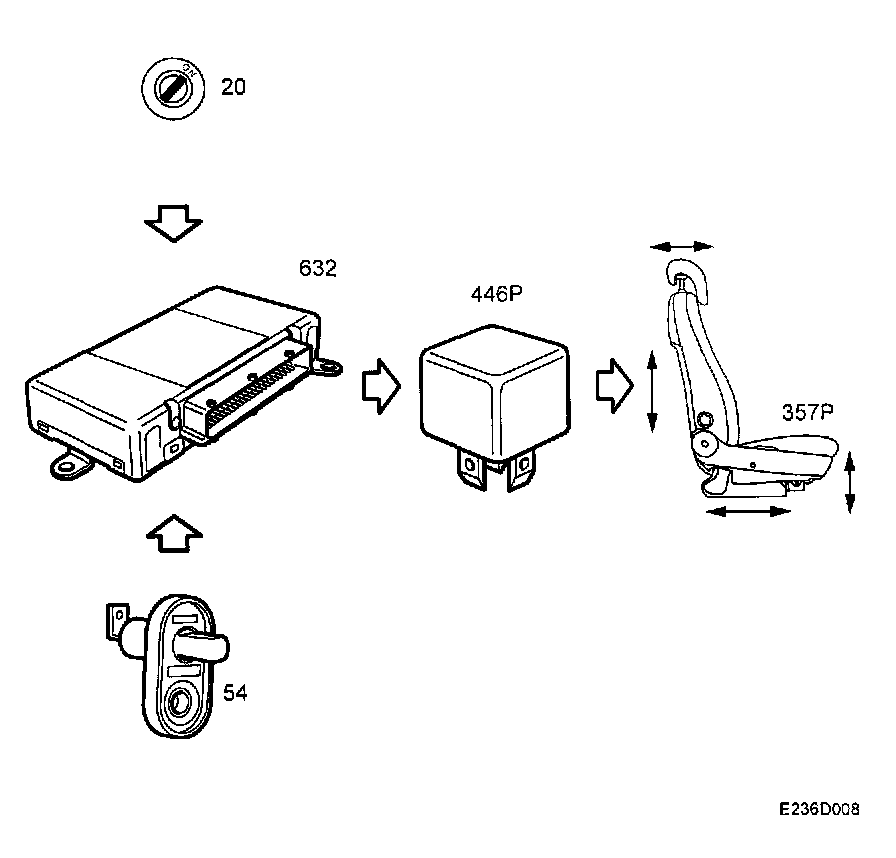

System overview, electric powered passenger seat front







- Control module, TWICE (632)
- Relay, electrically adjustable seat, passenger (446P)
- Switch, electrically adjustable seat, passenger (357P)
- Door switch, front left (54FL)
- Door switch, front right (54FR)
- Ignition switch (20)

Main components, electric powered passenger seat front







1. Control module, TWICE (632)
2. Relay, electrically adjustable seat, passenger (446P)
3. Switch, electrically adjustable seat, passenger (357P)
4. Door switch, front left (54FL)
5. Door switch, front right (54FR)
