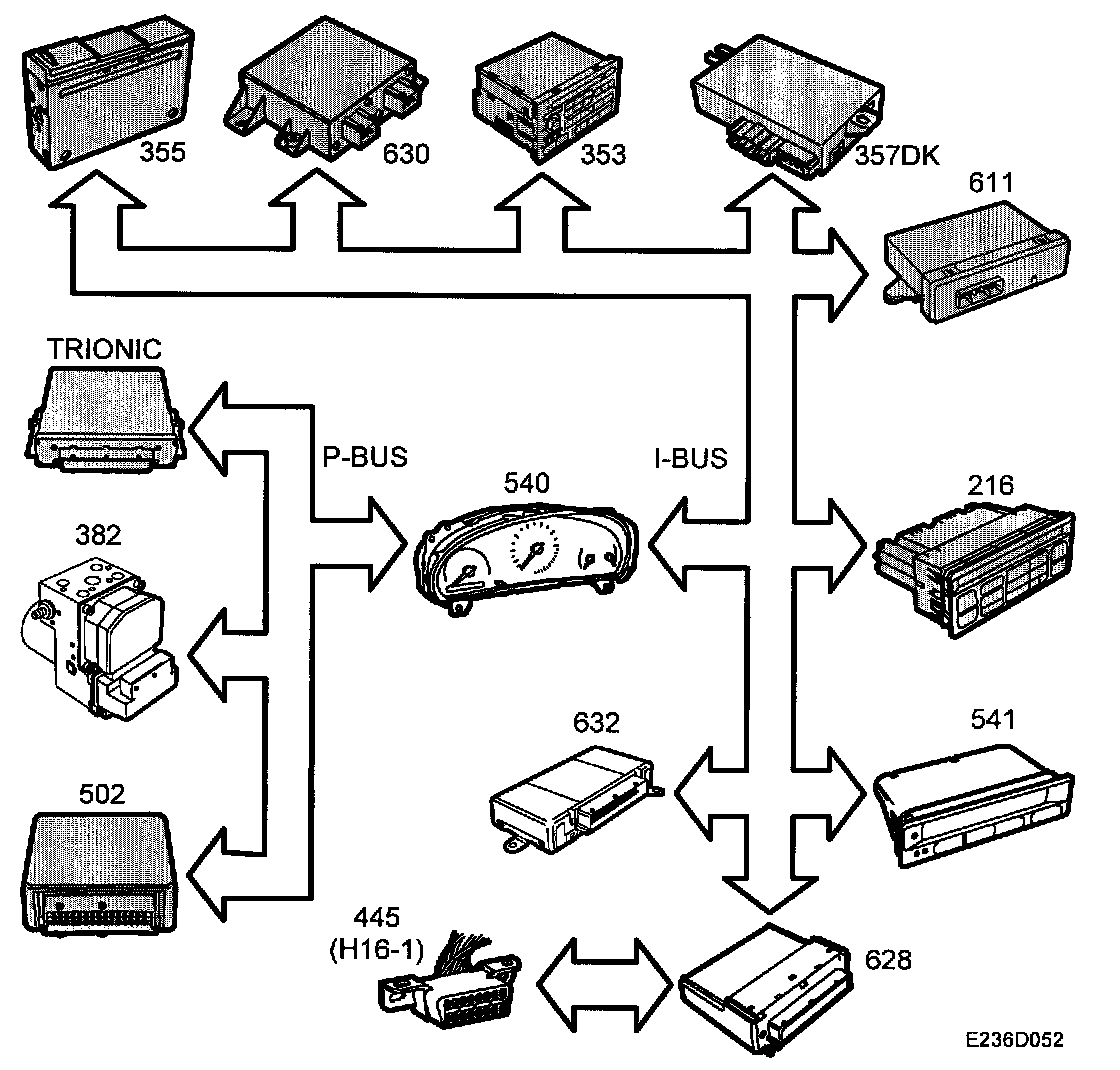

Main Unit Outputs, Bus

Main Unit Outputs, Bus






- Time RDS (hr, mm, sec) used by SID (541)
- Date RDS (0 - 31) used by SID (541)
- Month RDS (Jan-Dec) used by SID (541)
- Sound (sound information) used by SID (541)
- Text message (text information for main unit) used by SID (541)
- CD changer control (information for controlling CD changer) used by CD changer (353)
- Diagnostics communication, see Bus and Diagnostics communication. See Powertrain Management/Computers and Control Systems/Information Bus
