System Overview, Intermittent Wiper Operation, Rear Window

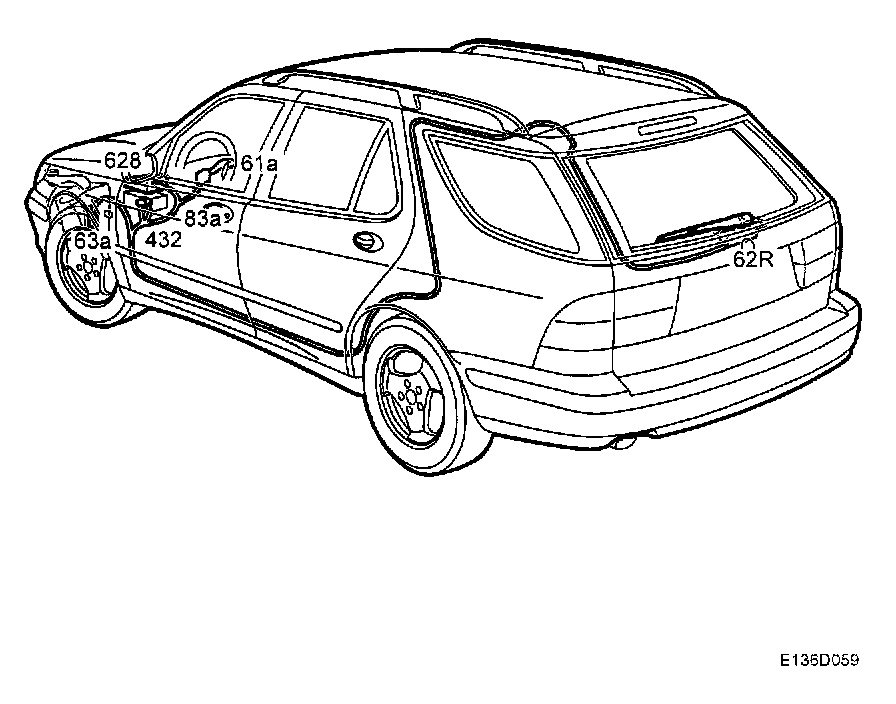

System overview, intermittent wiper operation, rear window (5D)







- Control module, DICE (628)
- Rear window wiper switch (61a)
- Intermittent rear window wiper operation, relay (83a)
- Washer fluid pump relay (432)
- Headlamp/rear window washer fluid, pump motor (63a)
- Rear window wiper motor (62R)

Main components, intermittent wiper operation, rear window (5D)







1. Control module, DICE (628)
2. Rear window wiper switch (61a)
3. Intermittent rear window wiper operation, relay (83a)
4. Washer fluid pump relay (432)
5. Rear window wiper motor (62R)
6. Headlamp/rear window washer fluid, pump motor (63a)
