System Overview, Seat Belt Warning

System Overview, Seat Belt Warning

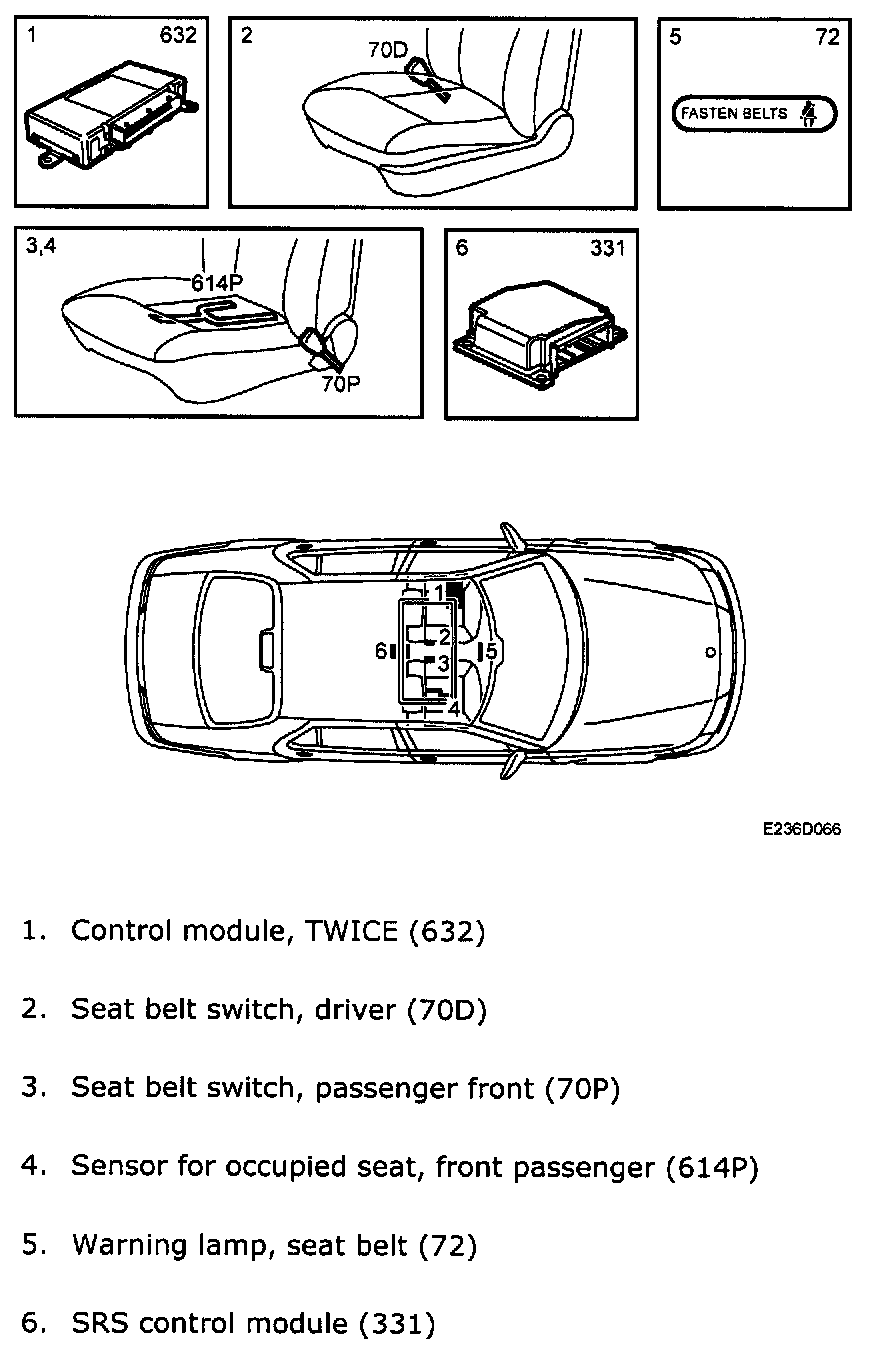

- Control module, TWICE (632)
- SRS control module (331)
- Seat belt switch, driver (70D)
- Seat belt switch, passenger (70P)
- Sensor for occupied seat, front passenger (614P)
- Warning lamp, seat belt (72)
- SID (541)


Main components, seat belt warning
