Grounding Point G33

Grounding point G33








Location: Below left-hand A pillar.

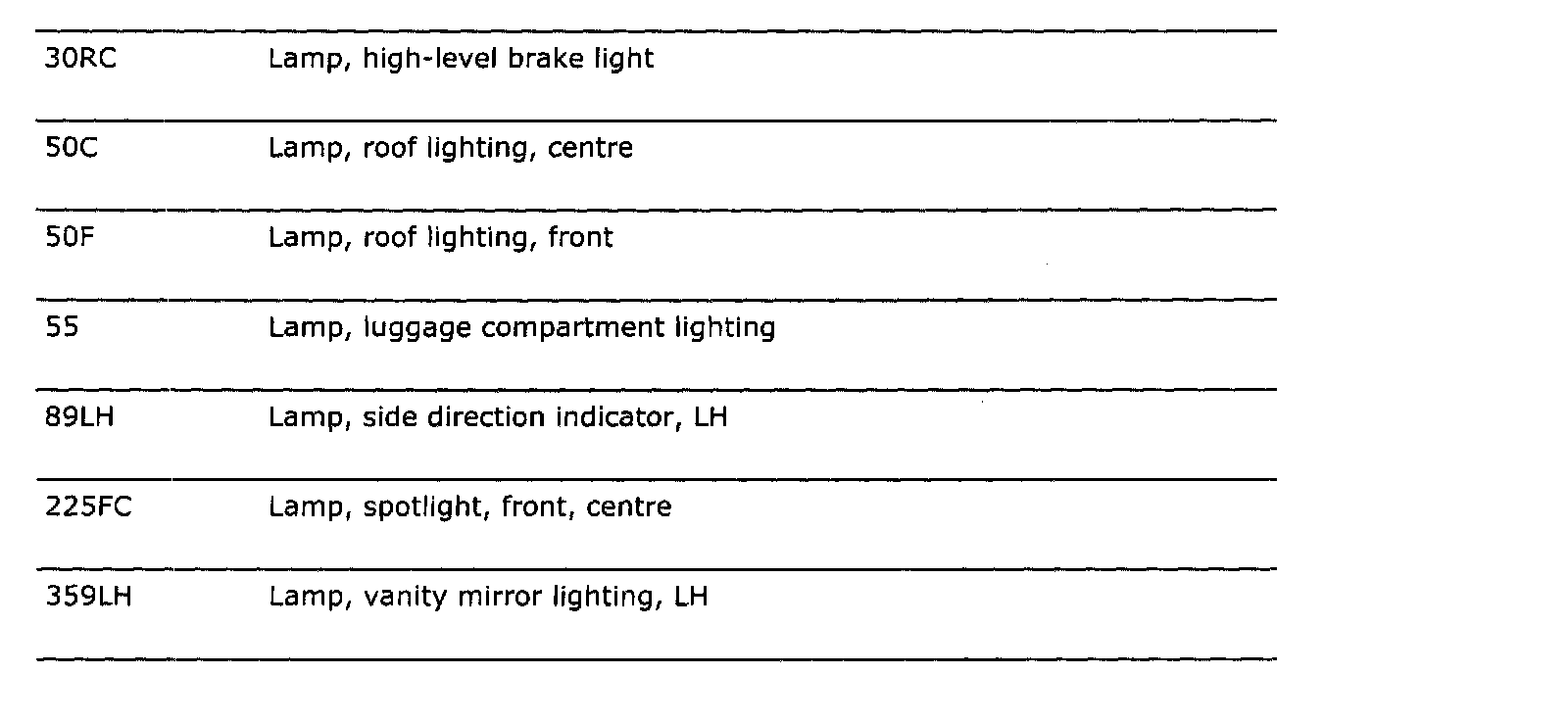

Via Crimp J90, rear wiring harness:

Components always connected

Via Crimp 3130, driver door, which is connected to crimp J90 (1 Of 2):

Via Crimp 3130, driver door, which is connected to crimp J90 (2 Of 2):

Additional components for LHD car

Via Crimp 3131, passenger door, which is connected to crimp J90:

Additional components for RHD car
