Home >> Saab >> 2002 >> 9-5 Aero Wagon (9600) L4-2.3L Turbo (B235) HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Driver/Vehicle Information Display >> Horn

Horn

Horn

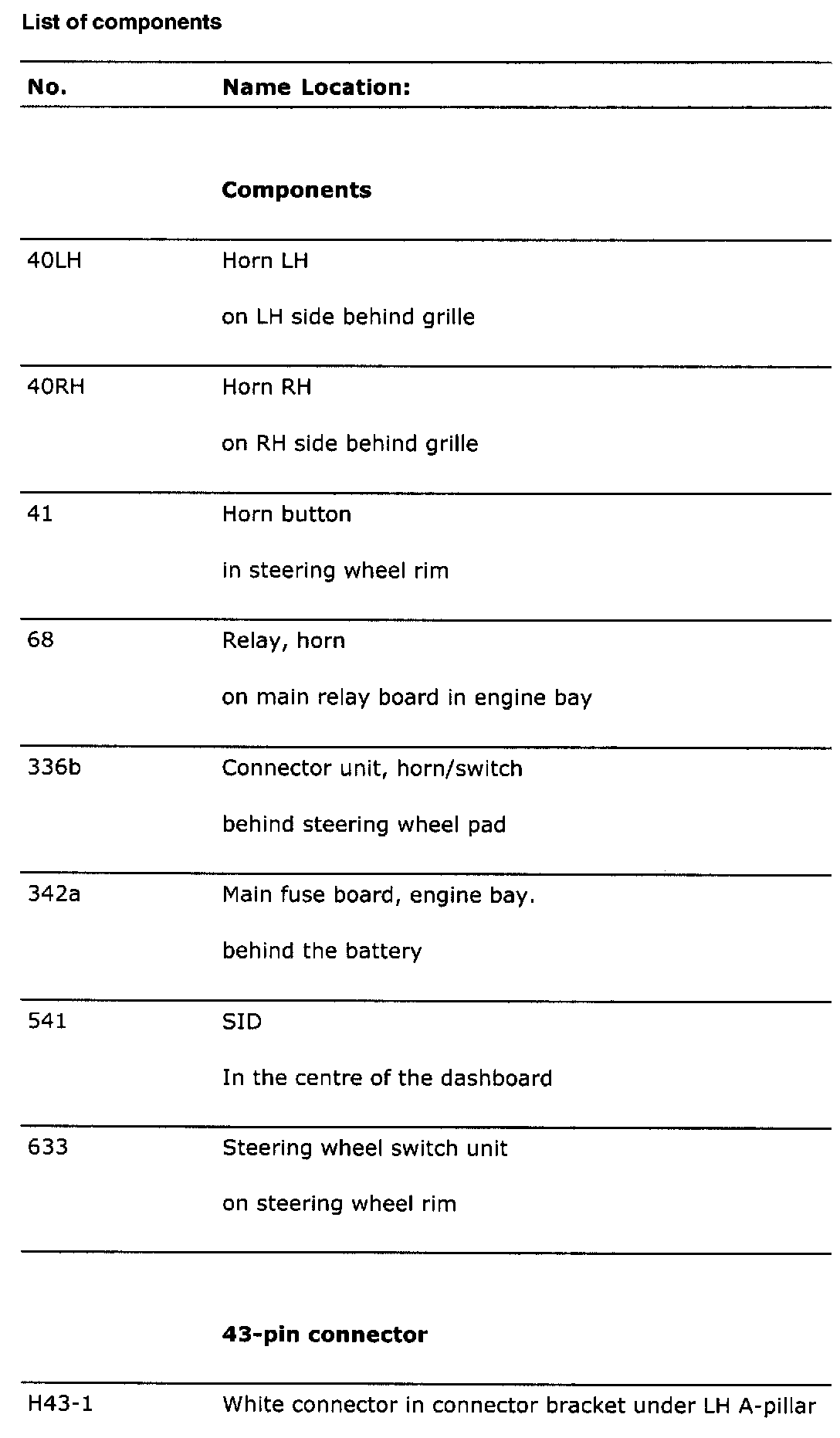

Component List

Part 1:

Part 2:
