Engine Mounting, Left

Engine Mounting, Left
To remove





1. Cover the wings and remove the cover over the battery.
Note the radio code where applicable.
Remove the top engine cover.

2. Detach the battery vent hose and remove the battery and battery tray.

VY�:

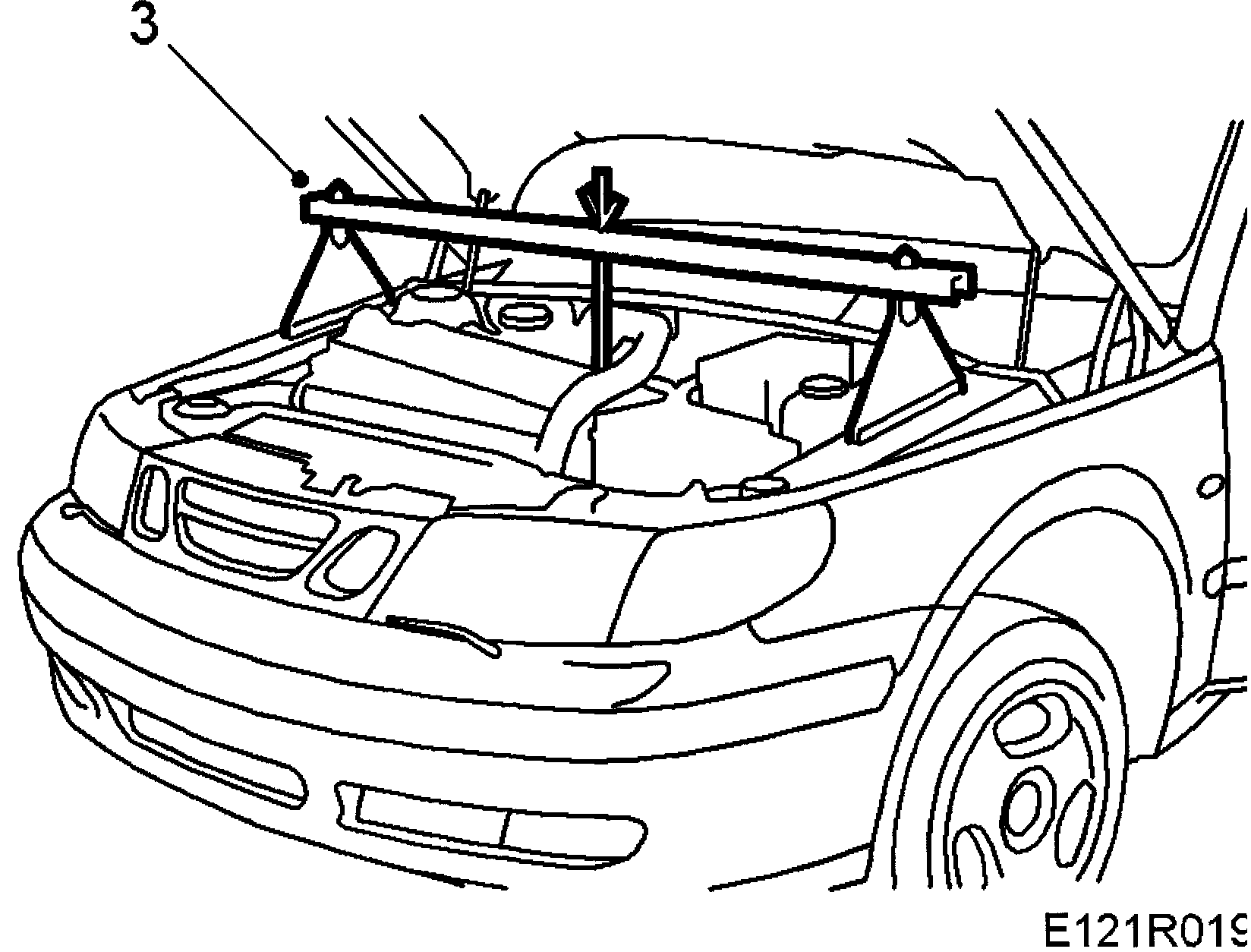

3. Relieve the weight on the engine with 8394 850 Lifting beam





4. Undo the centre nut and bolts on the engine pad.
5. Remove the engine pad.
6. Detach the clutch hydraulic hose from its fastening.
7. Remove the engine mounting.

To fit





1. Refit the engine mounting.
Tightening torque, man. 47 Nm (35 ft. lbs.)
Tightening torque, aut. 84 Nm (62 ft. lbs.)
2. Fit the clutch hydraulic hose to its fastening.
3. Fit the engine pad locating bolt and make sure the centre bolt is in the centre of the engine pad without being pulled to one side.
4. Tighten the remaining bolts and the centre nut
Tightening torque bolts 40 Nm + 45° (35 ft. lbs. +45°)
Tightening torque, nut 84 Nm (62 ft. lbs.)
5. Take the weight off the engine and remove the lifting beam.





6. Fit the battery with tray and the battery vent hose.
Set the correct time on the clock. Calibrate the ACC.
