Heating and Ventilation, A/C

Principal Components

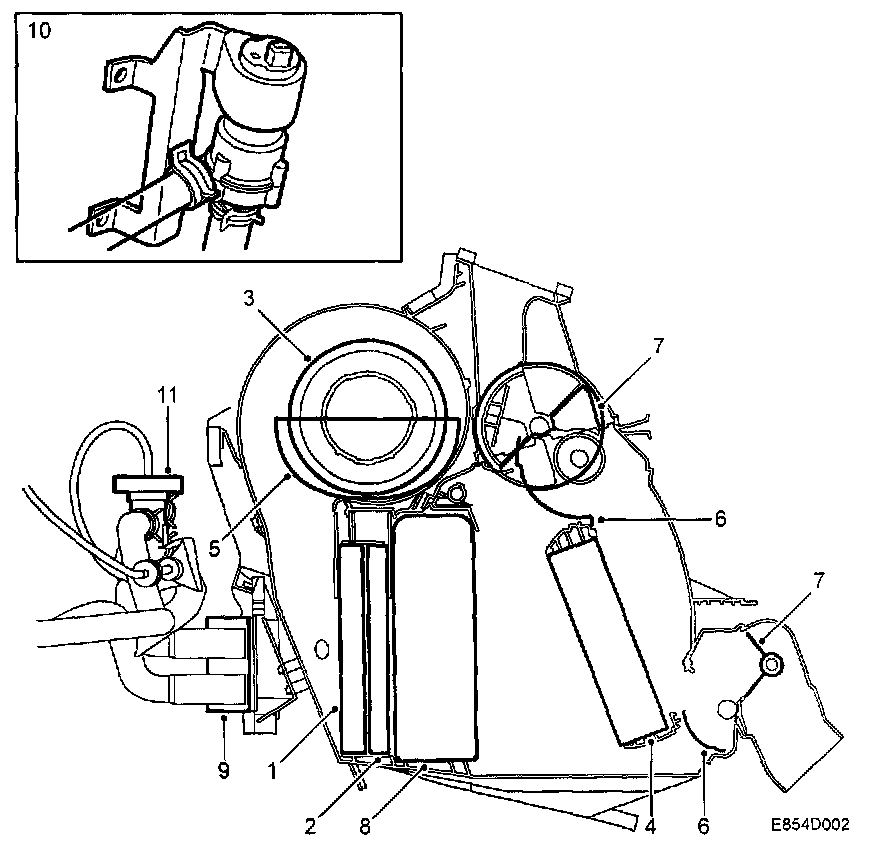

Heating And Ventilation
1. Fresh-air filter. See Fresh-air filter
2. Active charcoal filter (option) (-MY00)
3. Ventilation fan
4. Heat exchanger
5. Air recirculation flap. See Air recirculation.
6. Air-blending flap. See Air blending.
7. Air distribution damper. See Air distribution.
8. Evaporator (cars with A/C)
9. Expansion valve (cars with A/C)
10. Circulation pump (applies to V6 cold markets)
11. Water shut-off valve






A/C System
1. Compressor (170). See Compressor.
2. Condenser. See Condenser.
3. Pressure sensor (620). See Pressure sensor.
4. Receiver. See Receiver.
5. Expansion valve. See Expansion valve.
6. Evaporator. See Evaporator.
7. Evaporator temperature sensor (621)
8. A/C relay (156)
