A General Overview

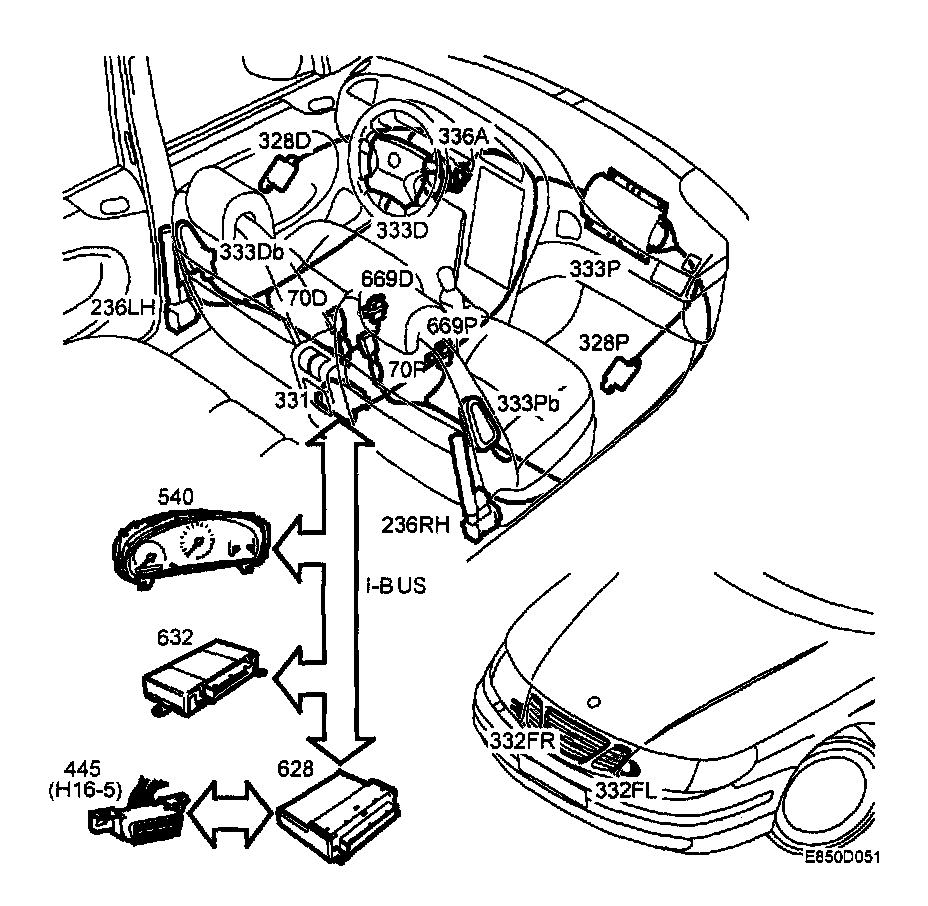

System Overview







- SRS control module (331)
- Front impact sensor (332FL, 332FR)
- Side impact sensors (328D, 328P)
- Sensor in seat-belt buckle (70D, 70P)
- Seat position sensor (669D, 669P)
- Front airbag, dual stage (333D)
- Passenger airbag, dual stage (333P)
- Side airbags (333Db, 333Pb)
- Seat-belt tensioners (236LH, 236RH)
- SRS lamp in main instrument display panel (540-47t)
- Contact roller on steering column (336a)
- TWICE control module (632)
- DICE control module (628)
- Data link connector (445)
