C0755 00 (TPMM - Tire Pressure Monitor Module)

Air Valve Right Front, No Radio Signal

Front Right:






Fault Symptom
Messages shown in SID.

On-Board Diagnosis

Enable Criteria:
Vehicle speed above 30 km/h for more than 30 seconds.

Fault Criteria:
No signal from the pressure sensor within 10 minutes after the input conditions are met.

System Reaction To A Fault:
None

Diagnostic Help
In case of a fault, the control module may need up to 10 minutes in an active state before it can diagnose the fault.

Diagnostic Help

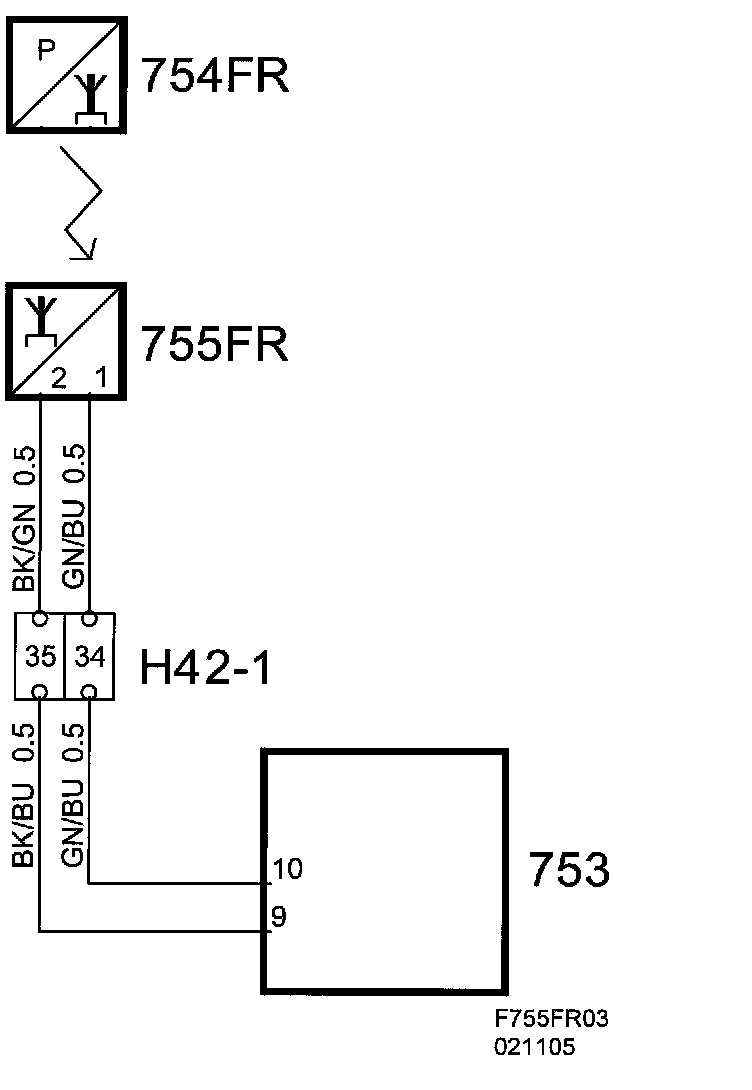

Diagnosis regards: Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:
Test value:
Pressure Status LF
Transmissions RF
(See also description of readings/activations in diagnostic tool)
