Backrest Adjustment Motor, Power Seat (357d)



Location: in the seat under the seat cushion

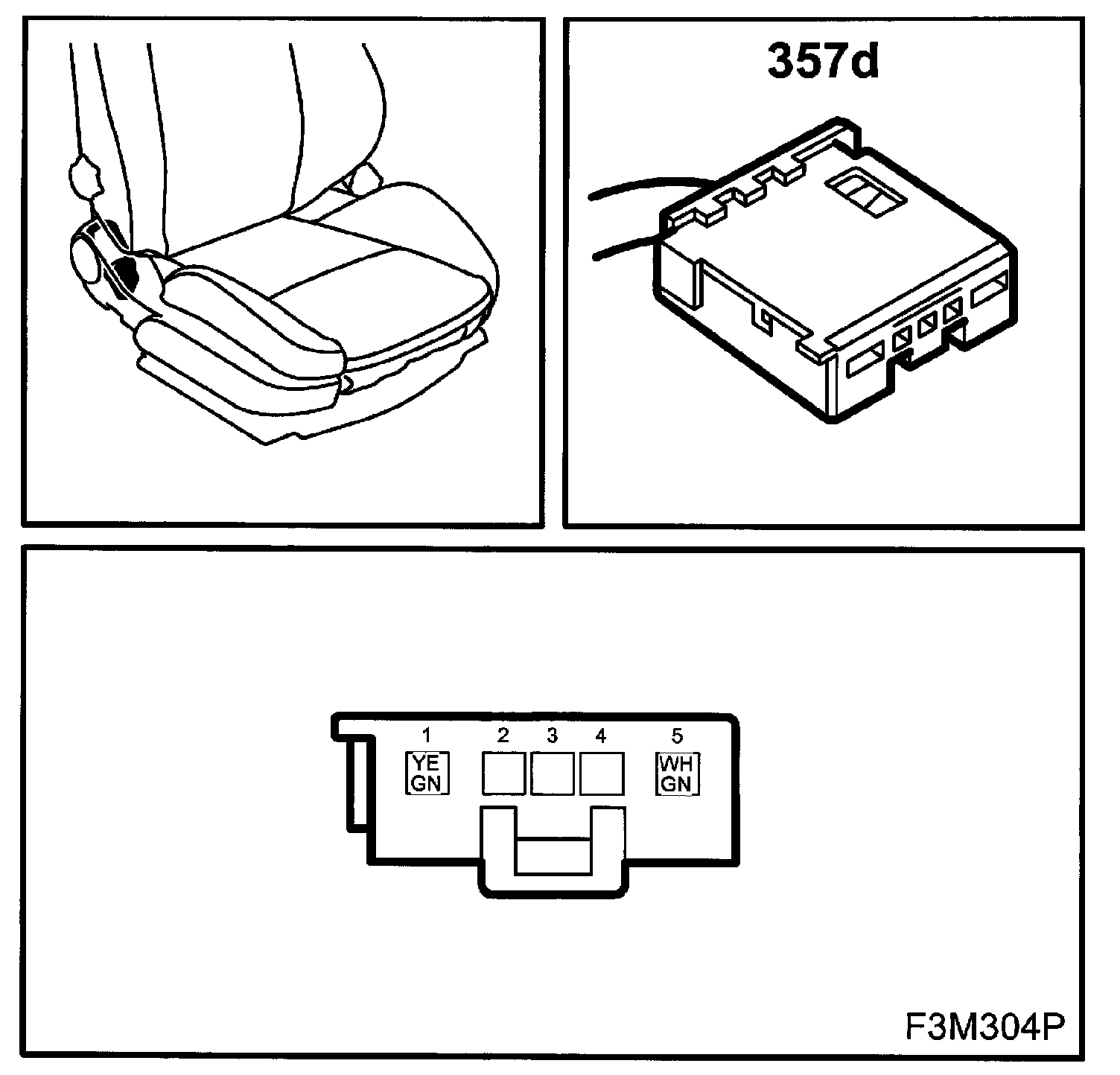

LH


Motor, Backrest Adjustment, Electricallv Operated Seat (357d):

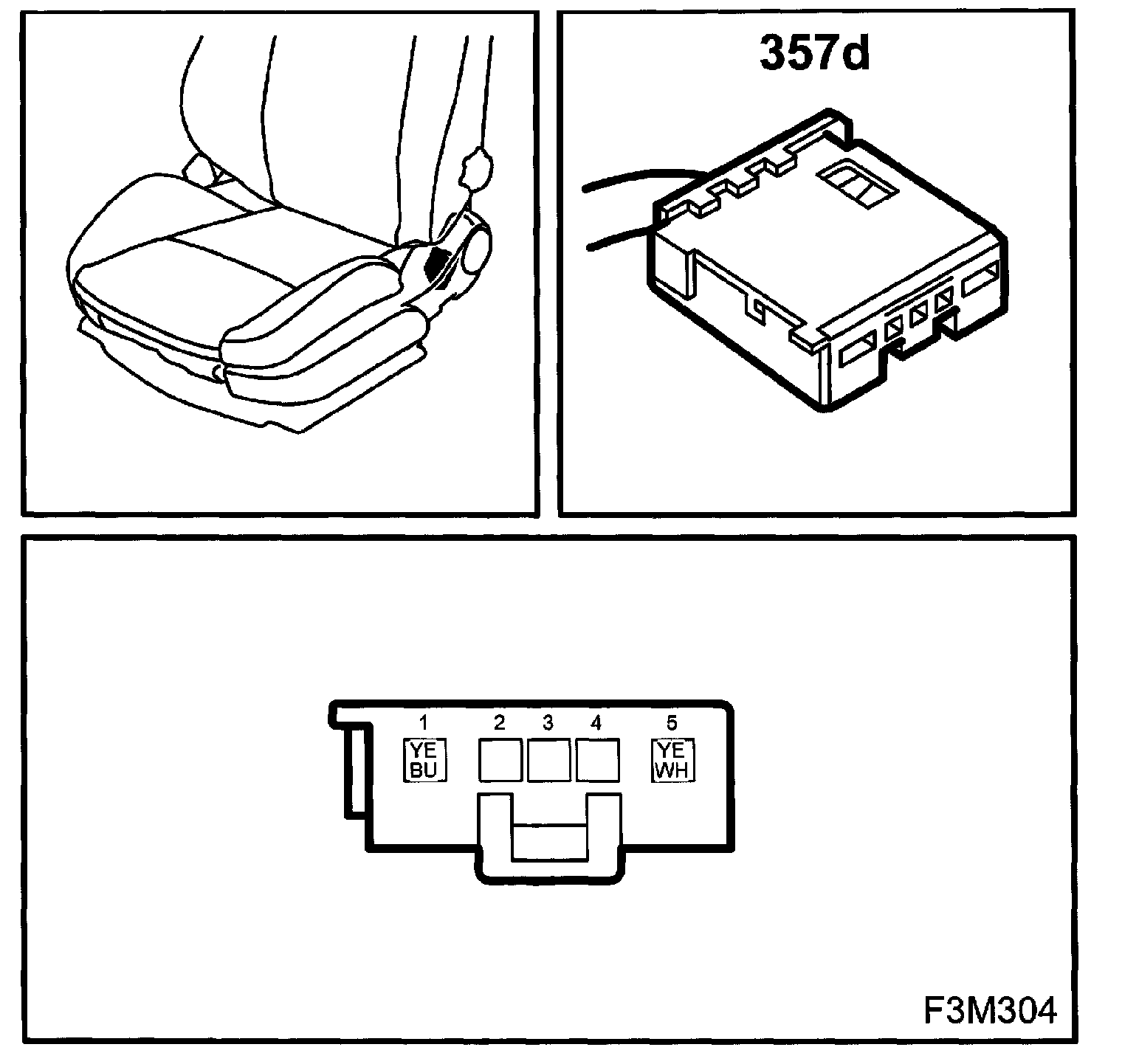

RH


Motor, Backrest Adjustment, Electricallv Operated Seat (357d):
