Grounding Point G2

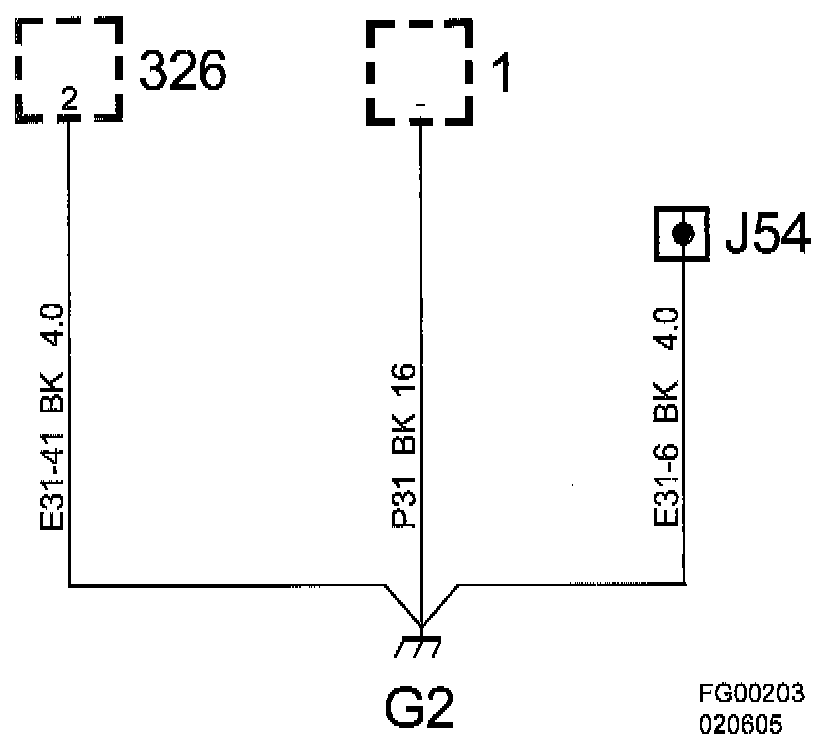

Grounding Point G2

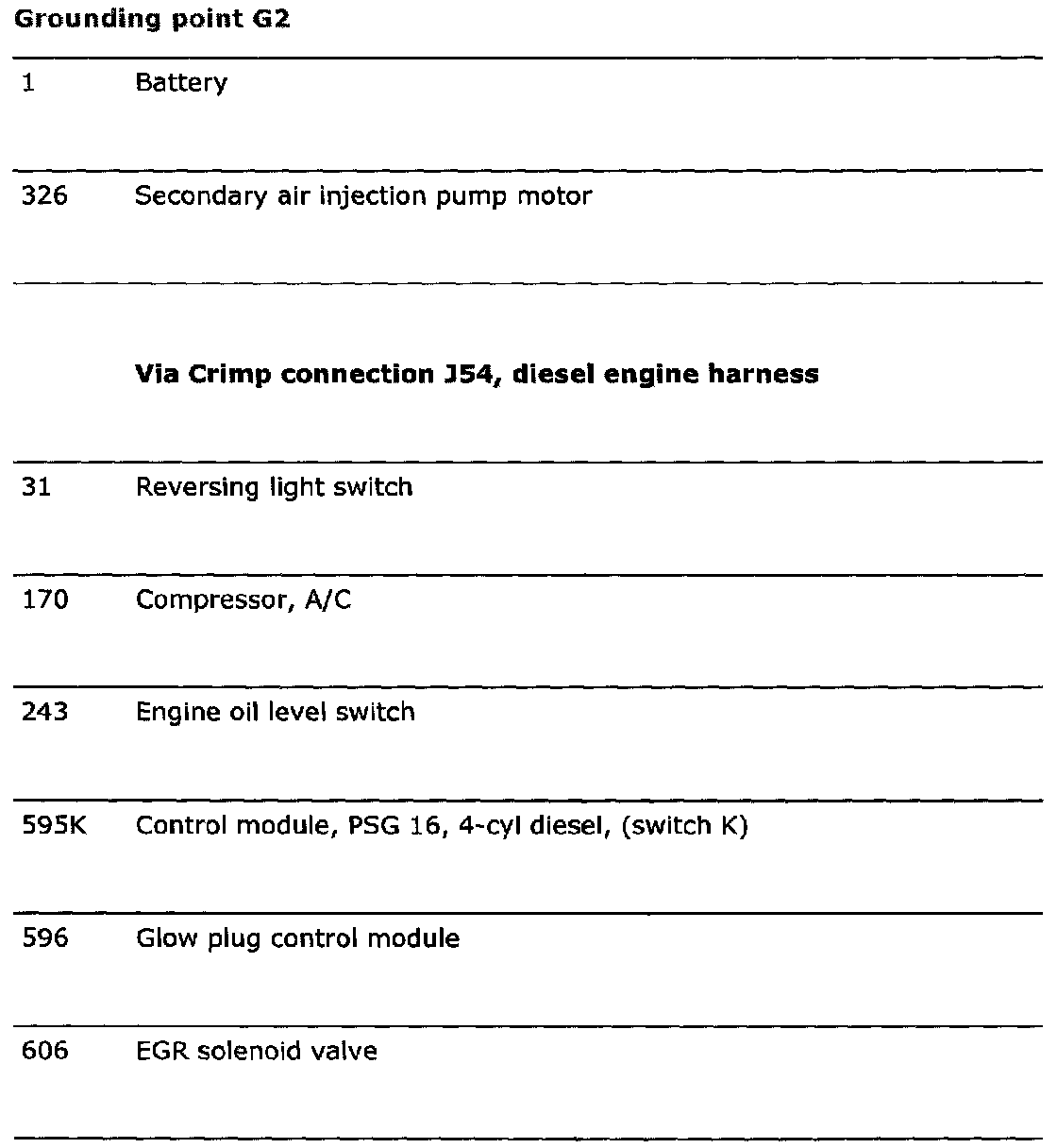

Connected Components:

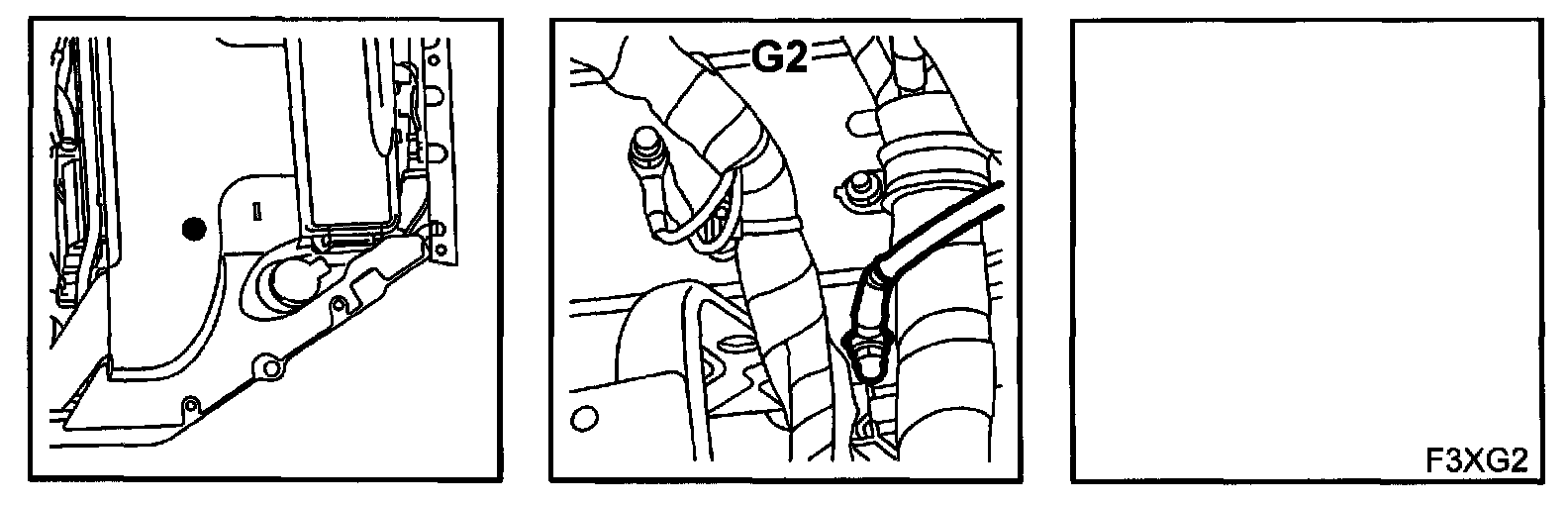

Location: On the side of the LH structural member near the connector console

Grounding Point G2:
