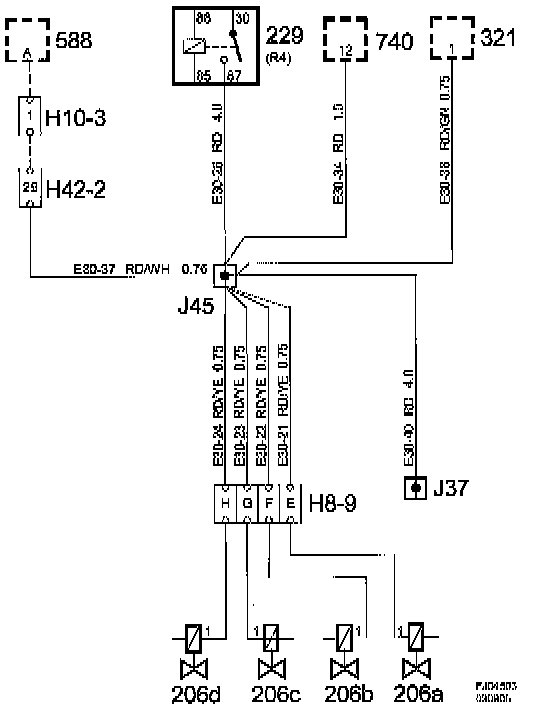

Crimp Connection J45, Engine Harness, Trionic




Crimp J45, Petrol Engine Harness

Location: Approx. 270 mm from branching point connector H24-2 towards the engine control module.





List Of Components:
