Grounding Point G40
Grounding Point G40
Grounding Point
G40

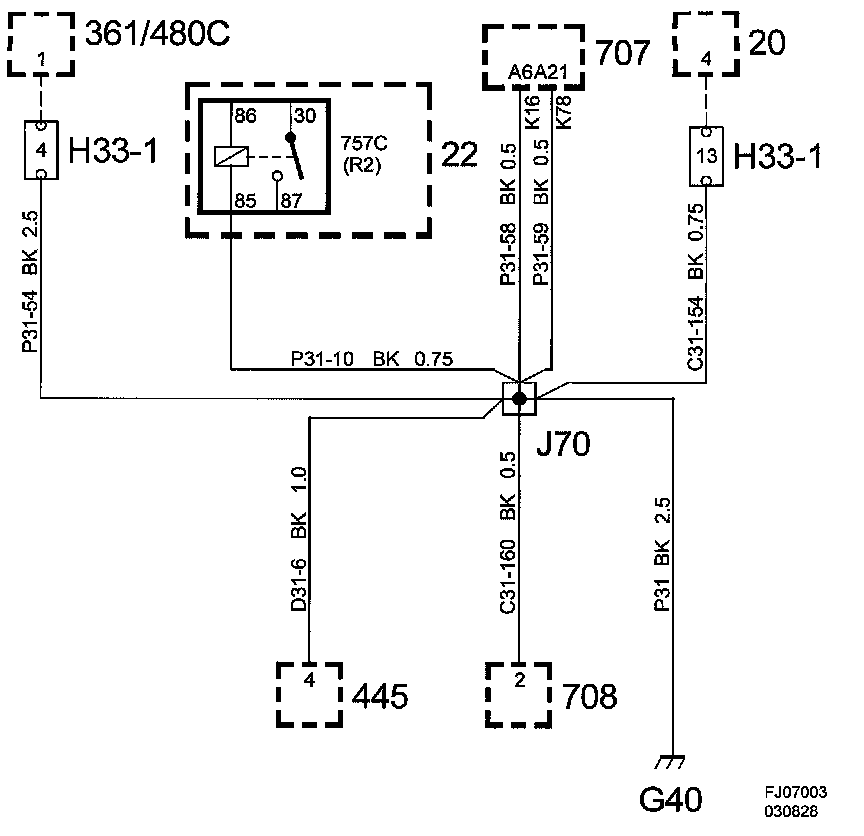

Diagram:

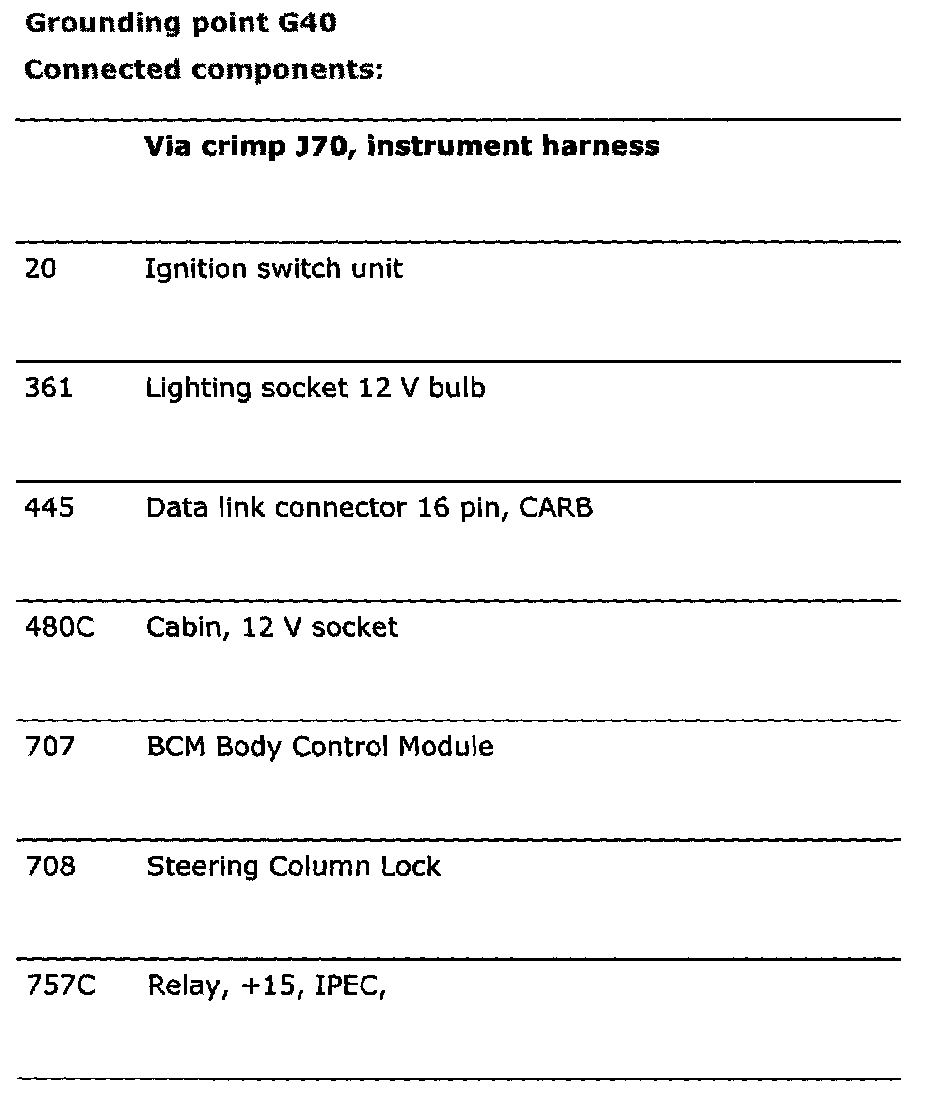

Connected Component:

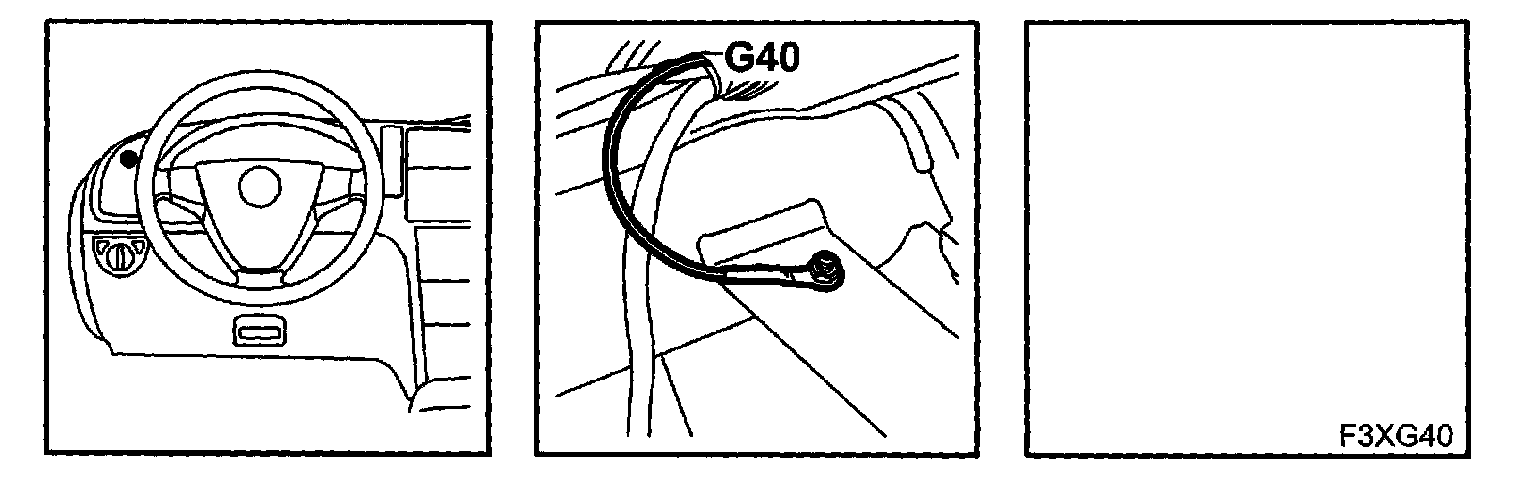

Location:
In the dashboard well to the left of the knee member
Grounding Pont G40:
