Alarm Module: Adjustments



Impact Sensitivity

NOTE: Before adjustment, make sure the security control unit has been securely installed on the bracket.

Remove the security control unit.

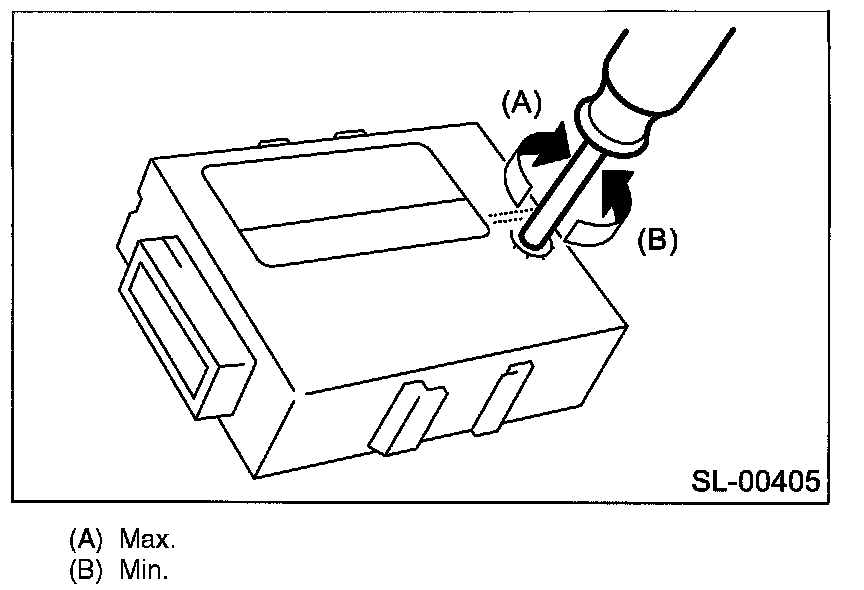

Adjust the sensitivity adjust screw in the security control unit.

NOTE: After adjusting, be sure to plug the adjust screw hole.







Install the security control unit.
Perform the impact sensitivity test.
