Front Fender: Service and Repair

Front Fender Panel:

REMOVAL

Disconnect the ground cable from battery.
Remove the side sill spoilers. (Model with side sill spoiler)
Remove the front bumper face.
Remove the head light assembly.
Remove the mud guard.

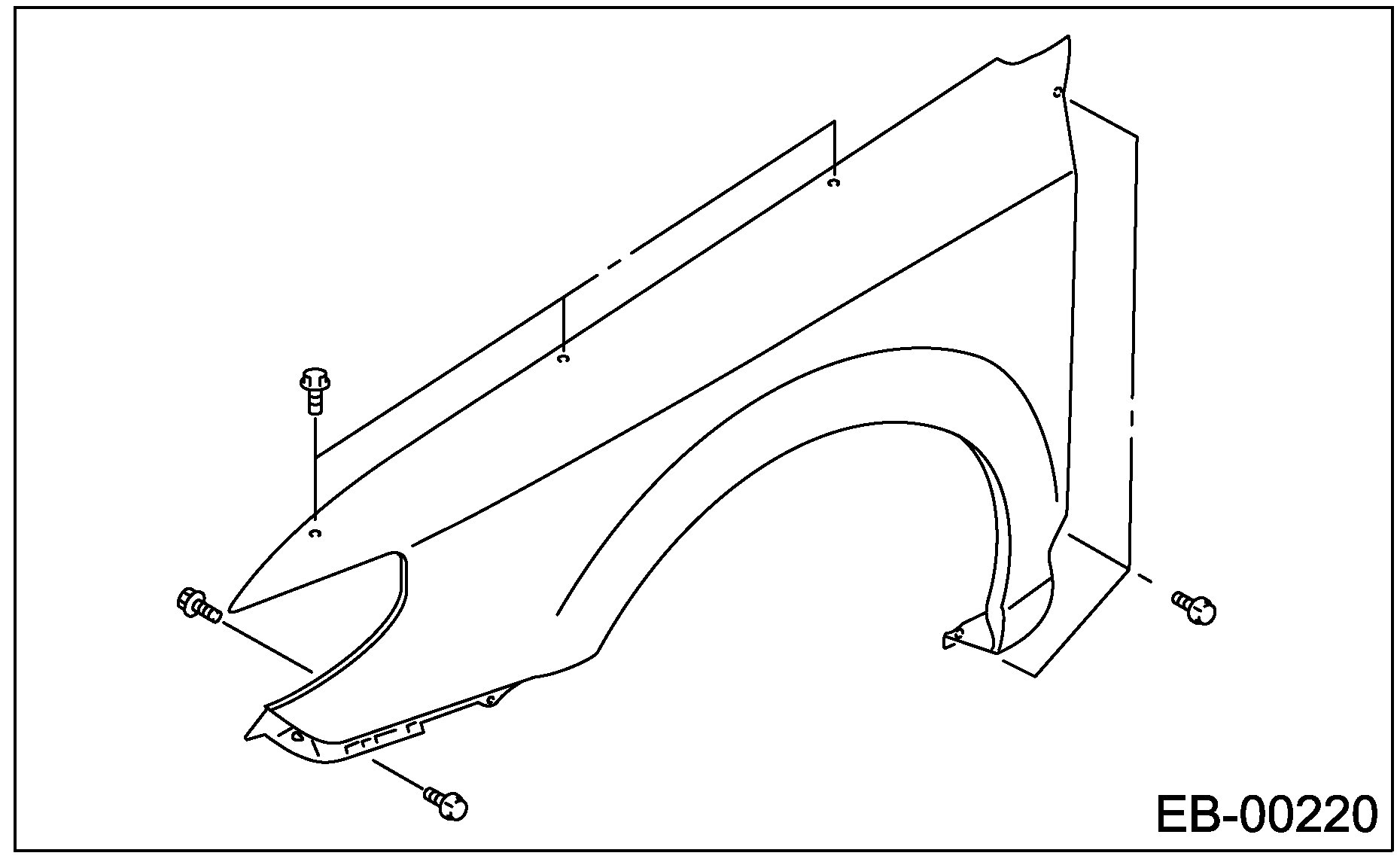

Remove the bolts to remove front fender panel.







INSTALLATION

Install in the reverse order of removal.
When the front fender panel is installed, clearance between front fender panel and front hood panel must be equal.

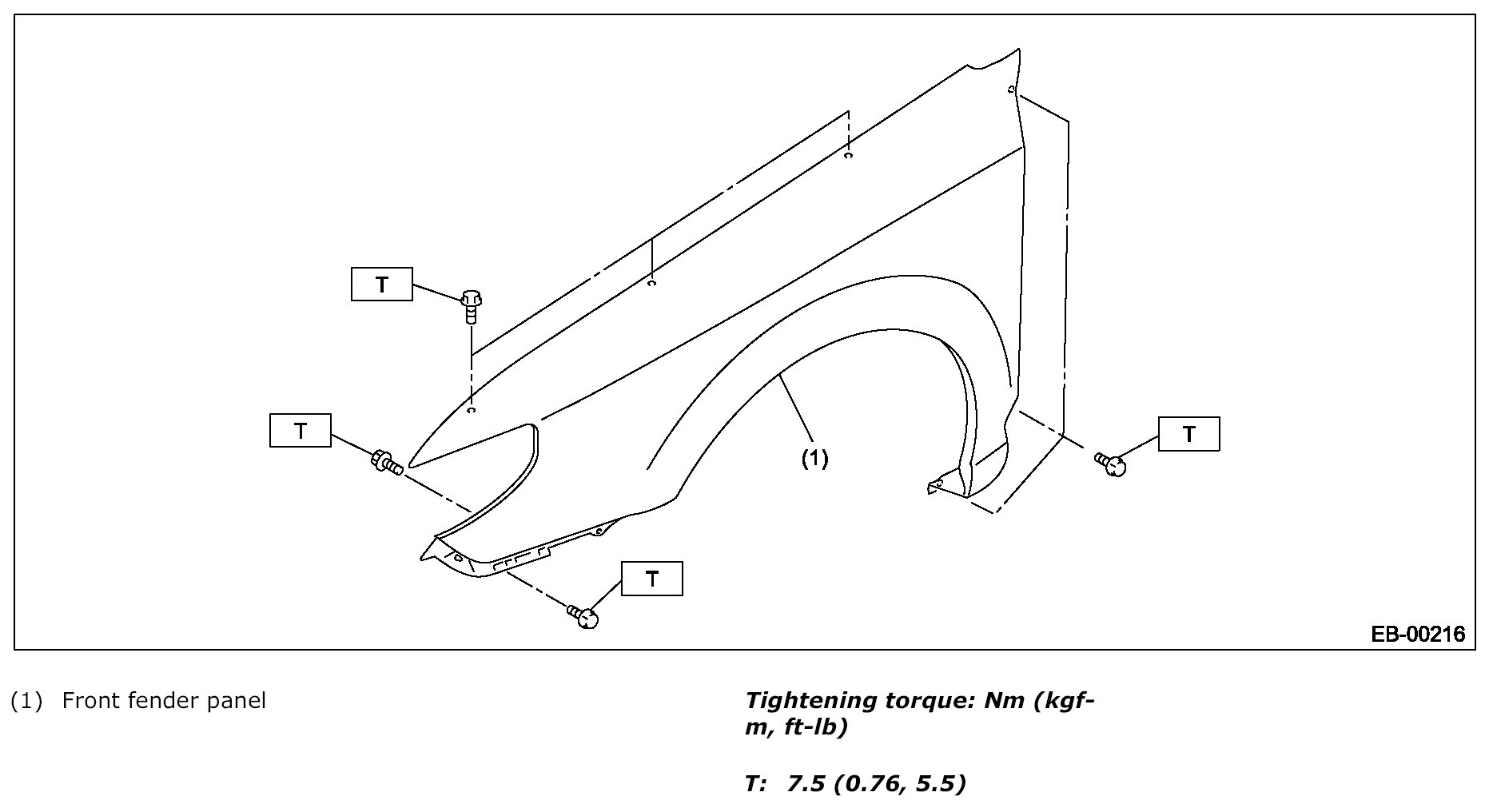

Tightening torque: 7.5 Nm (0.76 kgf-m, 5.5 ft-lb)
