Grille: Service and Repair

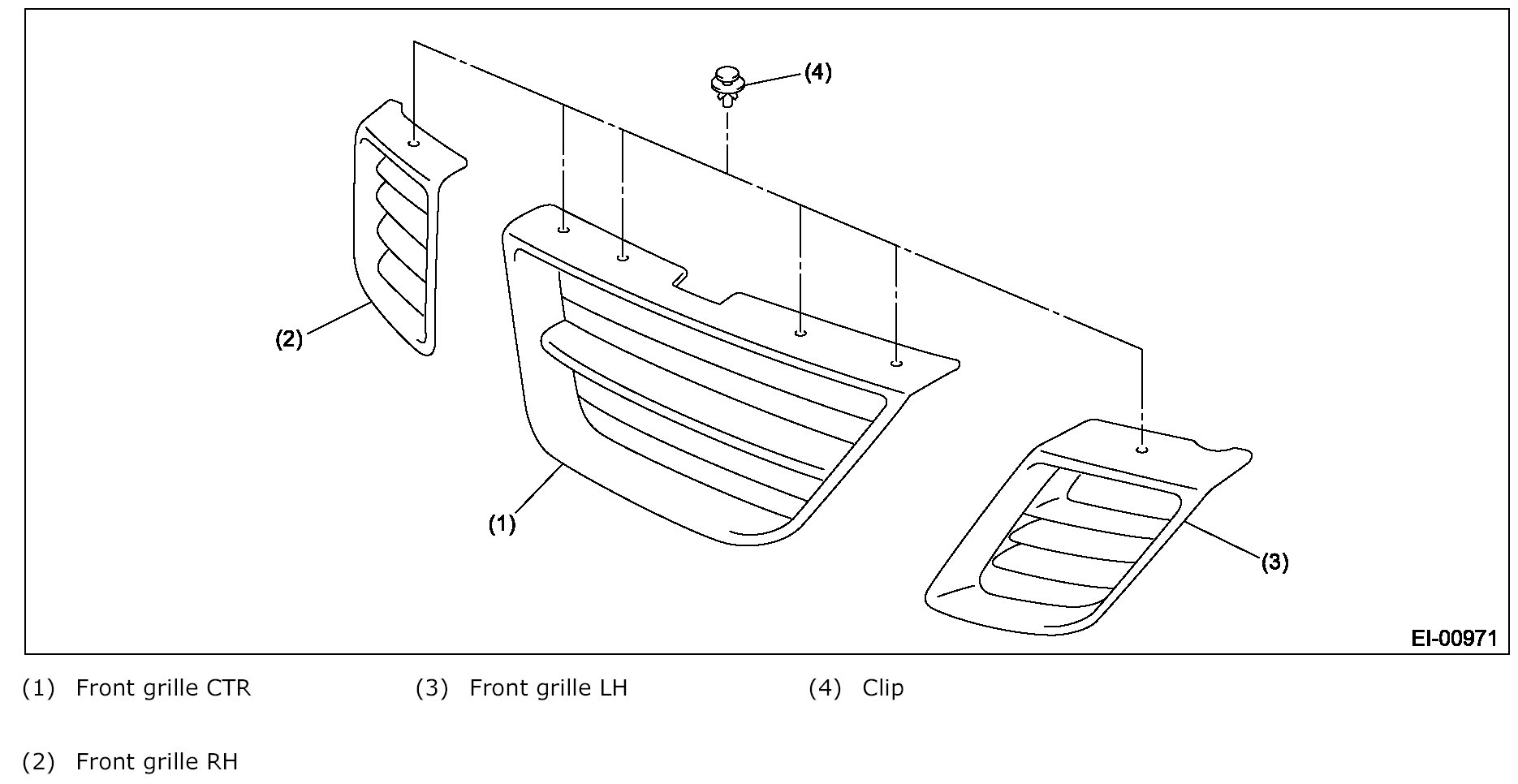

Front Grille:

REMOVAL

Open the front hood.
Remove the front bumper face.

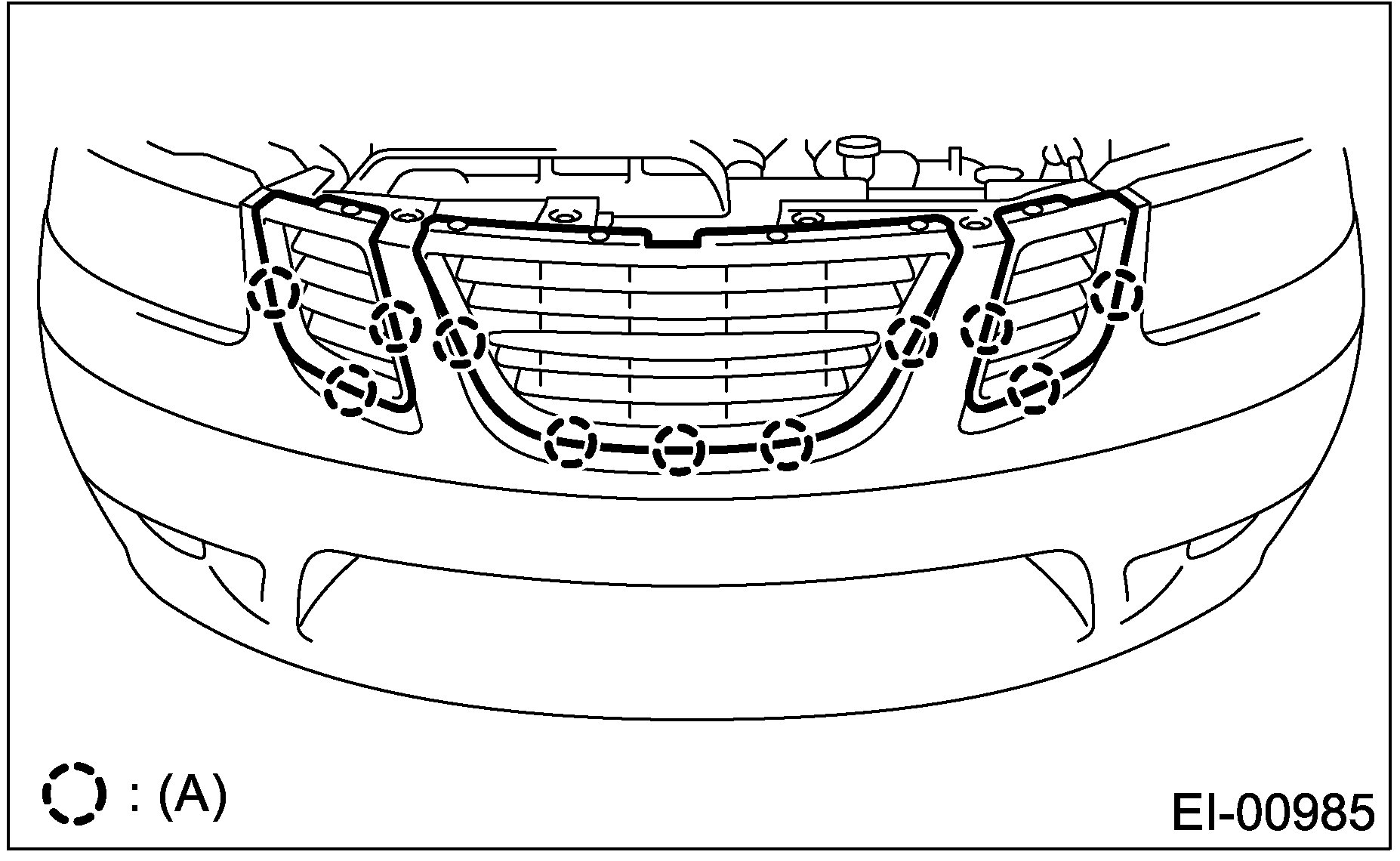

Remove the six clips (A).

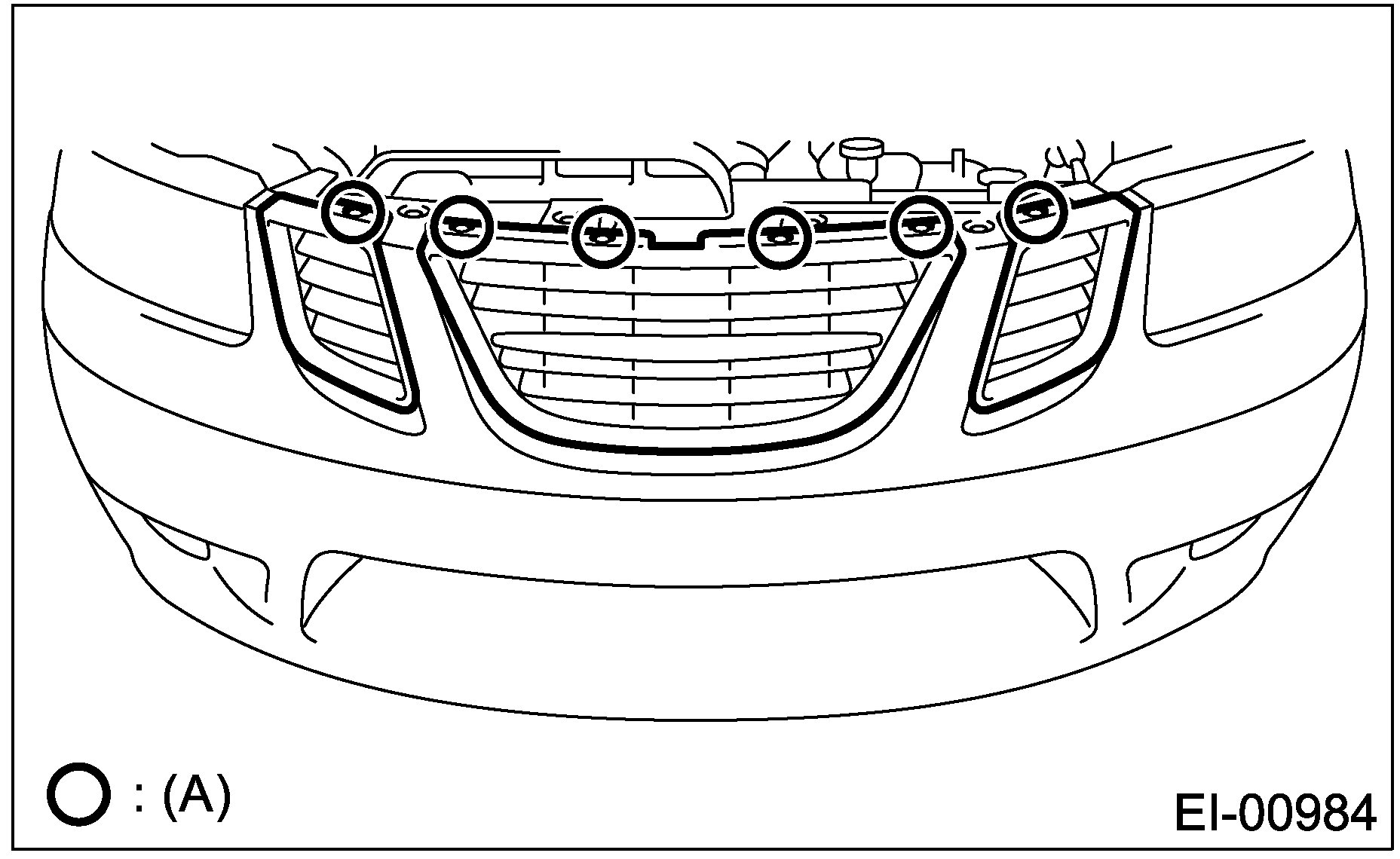

Remove the right and left hooks (A) on the lower side.

INSTALLATION

Install in the reverse order of removal.
