Initial Inspection and Diagnostic Overview

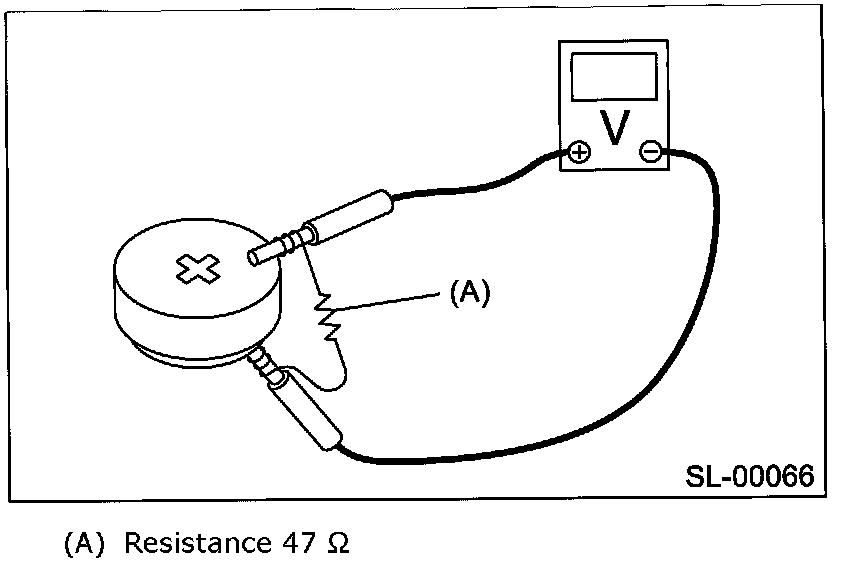

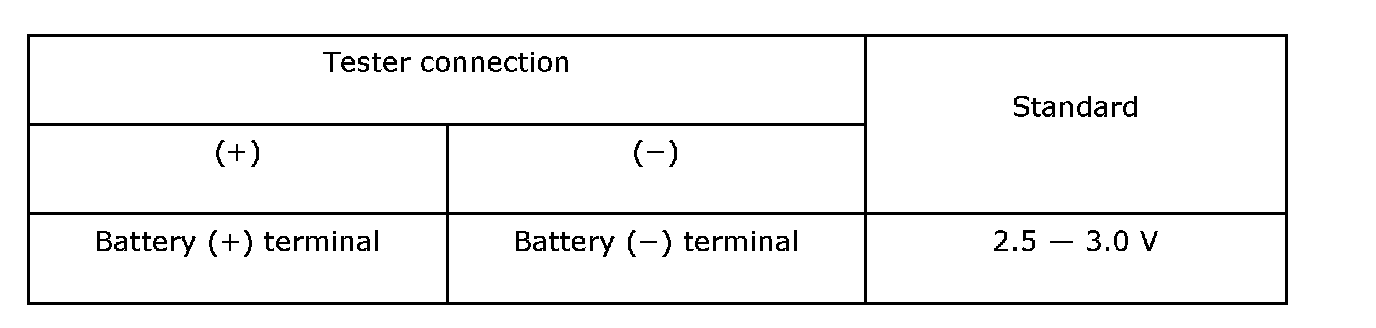

Keyless Transmitter BatteryInspectionMeasure the voltage between battery (+) terminal and (-) terminal.
NOTE: -
Battery discharge occurs during measurement. Complete the measurement within
5 seconds.
If NG, replace the battery. (Use CR1620 or equivalent.)
