Door Mirror

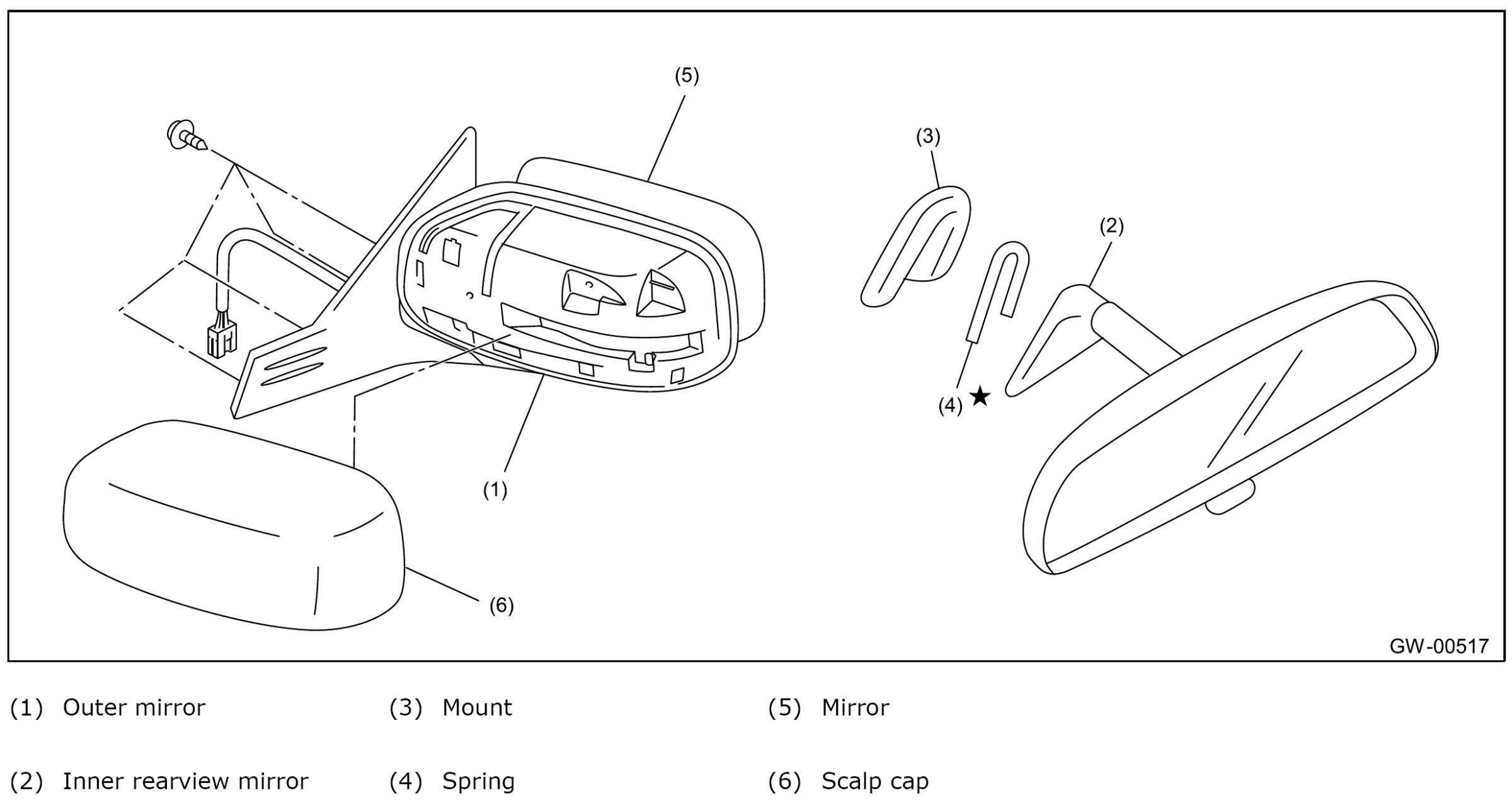

Mirror:

REMOVAL

Remove the door trim.

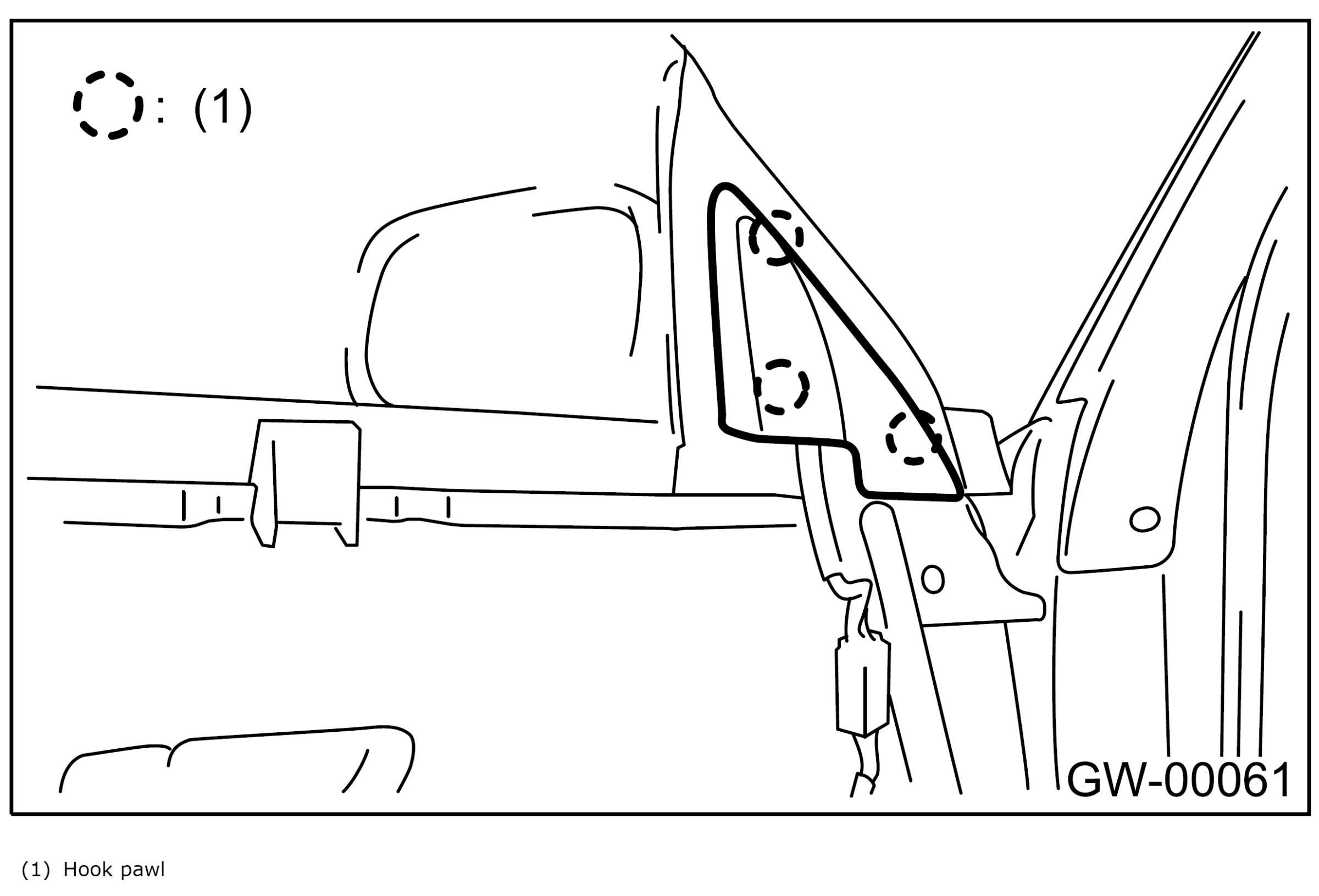

Remove the mirror gusset cover.

Disconnect the outer mirror connector.

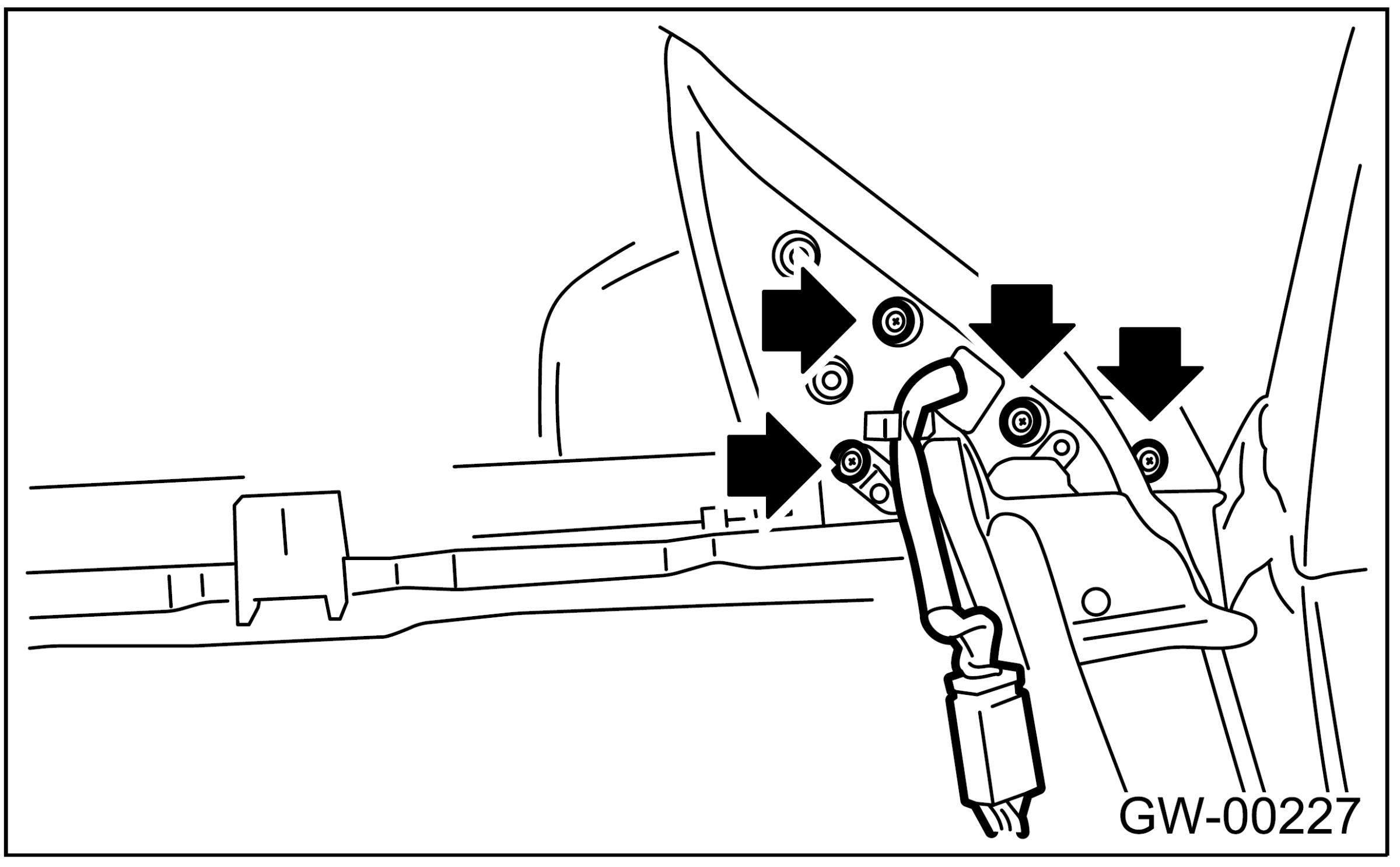

Remove the screws to remove the outer mirror assembly.

INSTALLATION

Install in the reverse order of removal.
