Front Disc

Front Disc

REMOVAL
15 INCH TYPE & 16 INCH TYPE
Set the vehicle on a lift.
Loosen the wheel nuts.
Lift-up the vehicle, and then remove the front wheel.

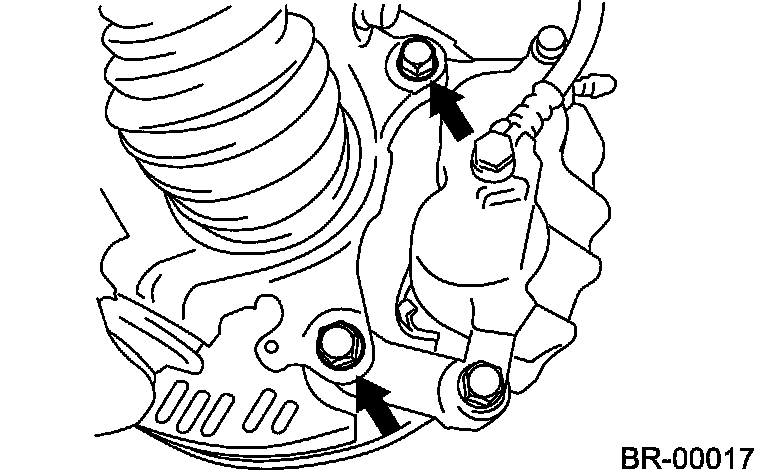

Remove the caliper body and support from housing, and suspend it from strut using a wire.





Remove the disc rotor.

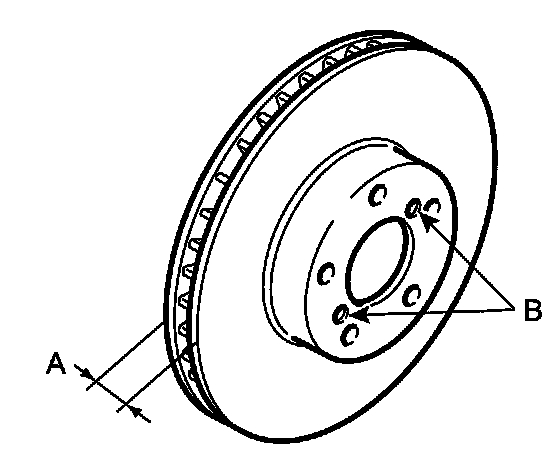

Note: If the disc rotor seizes up within the hub, drive the disc rotor out by installing an 8-mm bolt in holes (B) on rotor.





Clean mud and foreign particles from the caliper body assembly and support.

INSTALLATION
Install the disc rotor.
Install the caliper body and support to housing.
Tightening torque: 80 Nm (8.2 kgf-m, 59 ft. lbs.)
Install the wheel.
