Drive/Propeller Shaft

COMPONENT
PROPELLER SHAFT

PROPELLER SHAFT:

(1) Propeller shaft (DOJ)
(2) Propeller shaft UJ type)
(3) Rear differential
Tightening torque: Nm type) (kgf-m, ft. lbs.)
T1:31 (3.2, 22.9)
T2: 52 (5.3, 38.3)

FRONT AXLE
EBJ+PTJ type

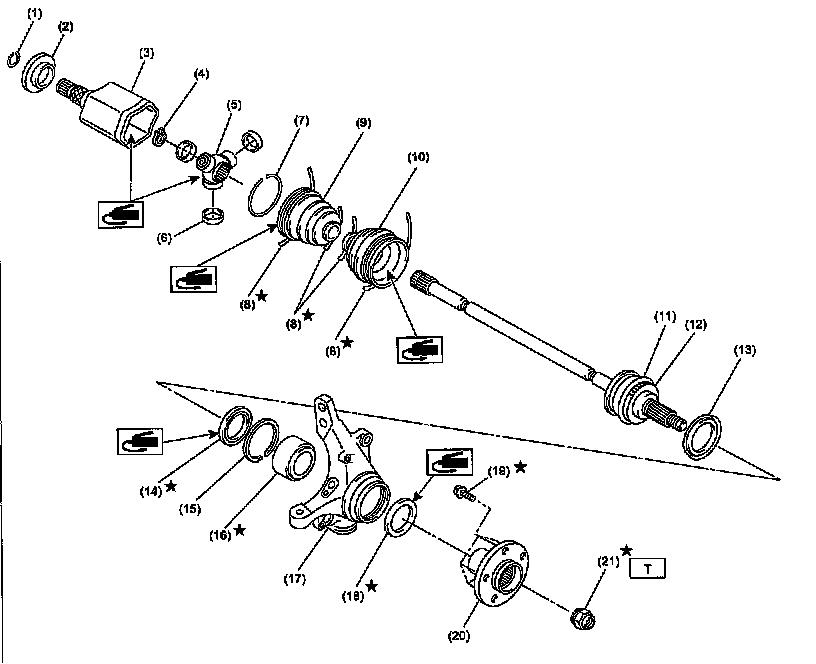

FRONT AXLE EBJ+PTJ type:

(1) Circlip
(2) Baffle plate (PTJ)
(3) Outer race (PTJ)
(4) Snap ring
(5) Trunnion
(6) Free ring
(7) Circlip
(8) Boot band
(9) Boot (PTJ)
(10) Boot (EBJ)
(11) EBJ ASSY
(12) Tone wheel
(13) Baffle plate
(14) Oil seal (IN)
(15) Snap ring
(16) Bearing
(17) Housing
(18) Oil seal (OUT)
(19) Hub bolt
(20) Hub
(21) Axle nut
Tightening torque: Nm (kgf-m, ft. lbs.)
T. 220 (22.4, 162)

REAR AXLE

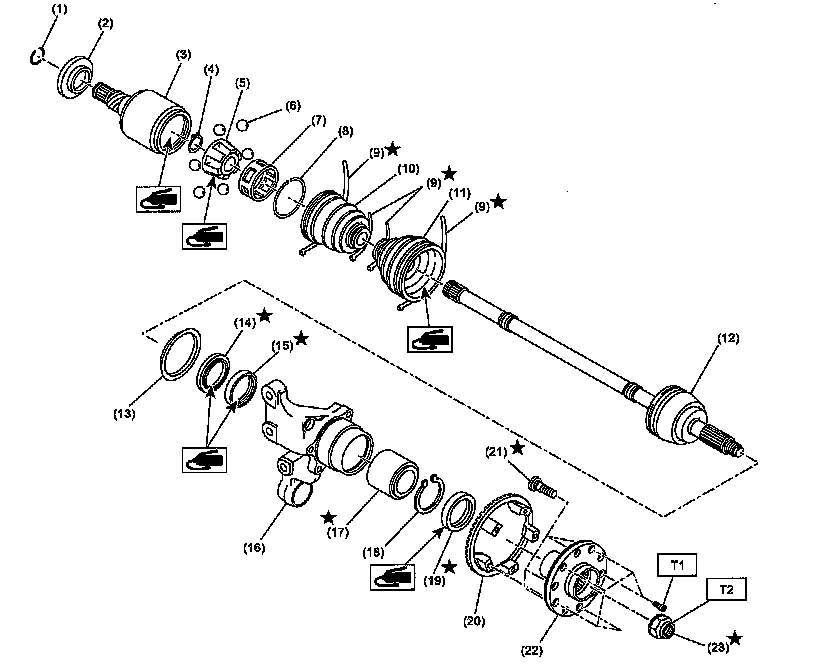

REAR AXLE:

(1) Circlip
(2) Baffle plate (DOJ)
(3) Outer race (DOJ)
(4) Snap ring
(5) Inner race
(6) Ball
(7) Cage
(8) Circlip
(9) Boot band
(10) Boot (DOJ)
(11) Boot
(12) Saab 9-2X 2.5i Linear: BJ ASSY Turbo: (EBJ ASSY
(13) Baffle plate
(14) Oil seal (IN. No. 2)
(15) Oil seal (IN.)
(16) Housing
(17) Bearing
(18) Snap ring
(19) Oil seal (OUT)
(20) Tone wheel
(21) Hub bolt BJ ASSY
(22) Hub
(23) Axle nut
Tightening torque: Nm (kgf-m, ft. lbs.)
T1: 13 (1.3, 9.4)
T2: 190 (19.4, 140)
