Compressor HVAC: Service and Repair

Compressor

Removal
Perform the compressor oil return operation.
Turn the A/C switch OFF and stop the engine.
Using the refrigerant recovery system, discharge refrigerant.
Disconnect the ground cable from battery.
Remove the V-belt or
Remove the generator.

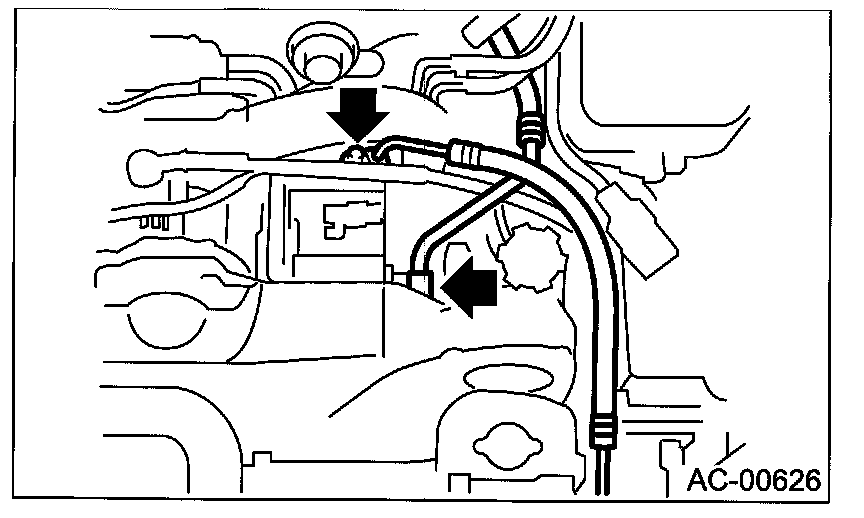

Remove the low-pressure hose and high-pressure hose.







Disconnect the compressor harness from body harness.

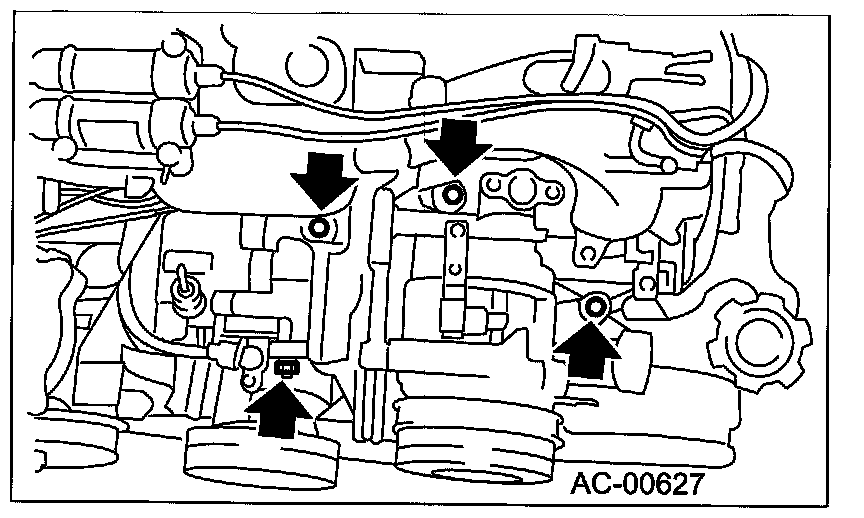

Loosen the bolts to remove the compressor bracket.







Remove the bolts, and then separate the compressor and bracket.







Installation
Install in the reverse order of removal.
Replace the O-rings on low-/high-pressure hoses with new ones, then apply compressor oil.
When replacing compressor, adjust amount of compressor oil.
Charge refrigerant.

Tightening torque:
T1: 7.4 Nm (0.75 kgf-m, 5.4 ft-lb)
T2: 22.6 Nm (2.3 kgf-m, 16.6 ft-lb)
T3: 23.0 Nm (2.35 kgf-m, 17.0 ft-lb)
T4: 28.9 Nm (2.95 kgf-m, 21.3 ft-lb)
T5: 35 Nm (3.6 kgf-m, 26 ft-lb)
