Condenser HVAC: Service and Repair



Condenser

Removal
Using the refrigerant recovery system, discharge refrigerant.
Disconnect the ground cable from battery.
Remove the front bumper.

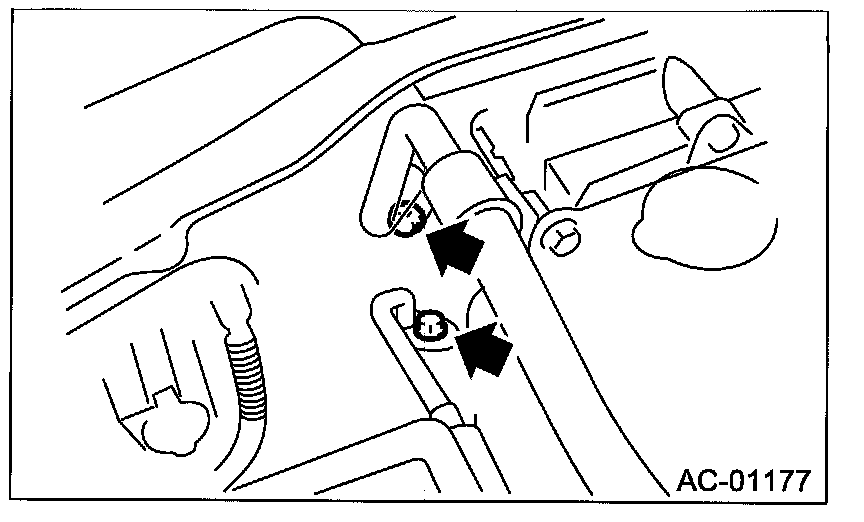

Disconnect the pressure hose and pipe from condenser.

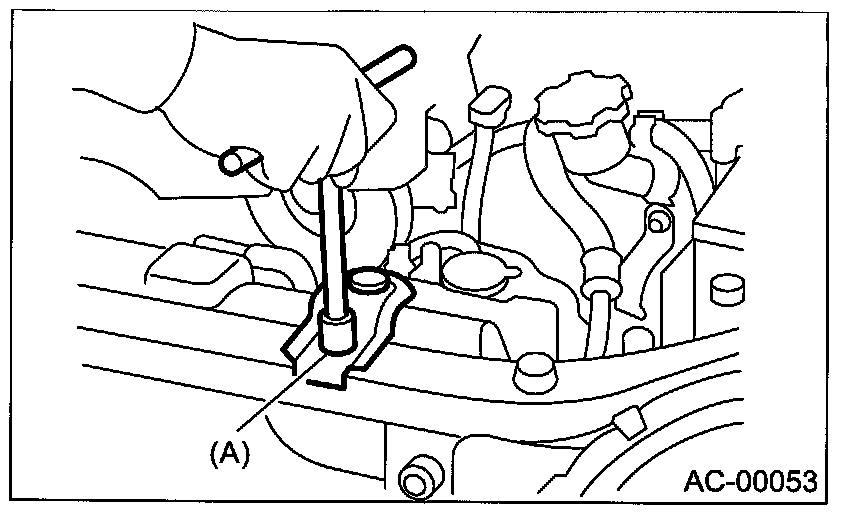

Remove the radiator bracket (A).

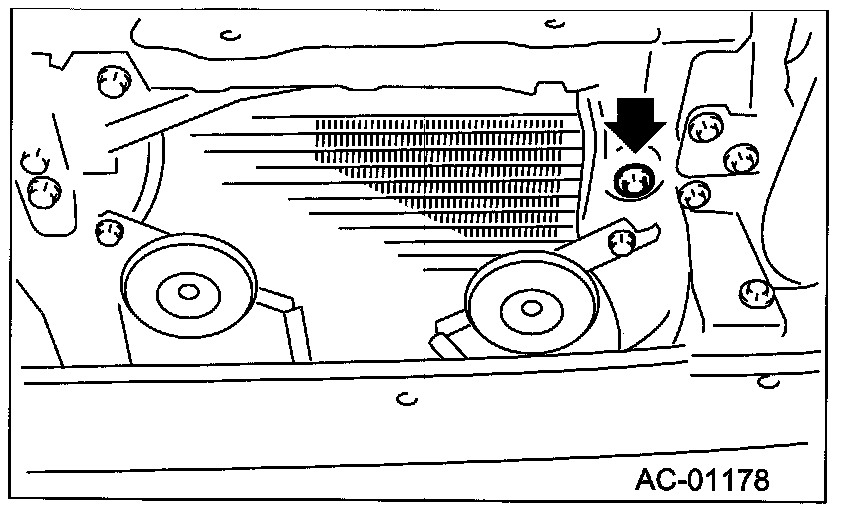

Remove the two bolts. While lifting the condenser, pull it out through the space between radiator and radiator panel.







IMPORTANT:
- Be careful not to damage the condenser fins. If a damaged fin is found, repair it using a thin screwdriver.
- If the condenser is replaced, add appropriate amount of compressor oil to the compressor.

Installation
Install in the reverse order of removal.

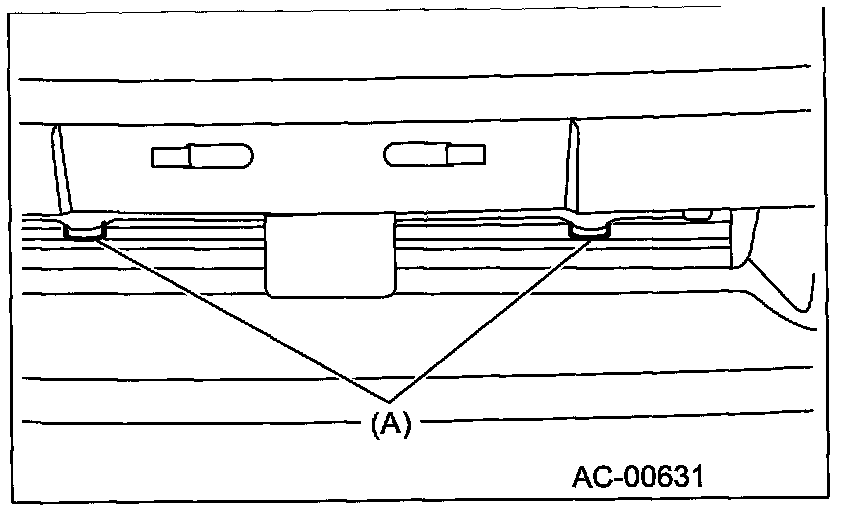

IMPORTANT: Replace the O-rings on hoses or pipes with new ones, and then apply compressor oil. Confirm that lower guide of condenser (A) has been fitted into holes on radiator panel.







Charge refrigerant.

Tightening torque: T1: 7.4 Nm (0.75 kgf-m, 5.4 ft-lb)
