Control Unit (Auto A/C Model)
Control Unit (Auto A/C Model)RemovalDisconnect the ground cable from battery.
Remove the console front panel.
Remove the center console panel.

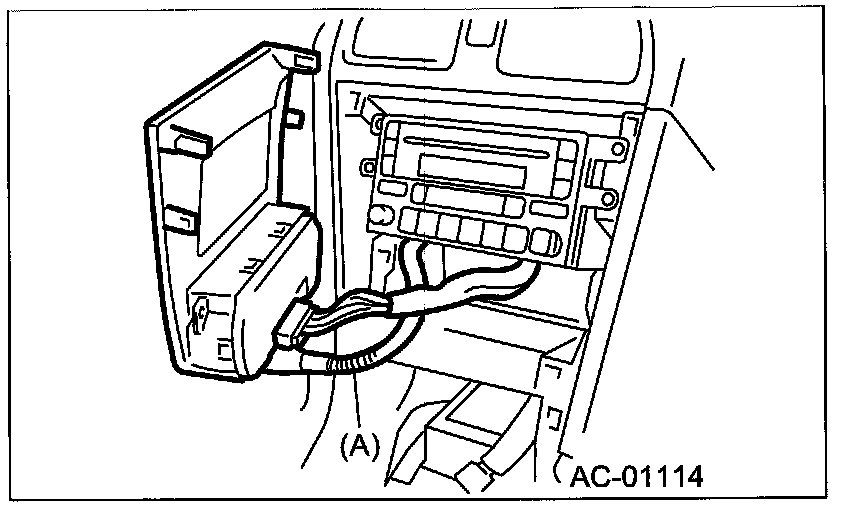

Disconnect the connector and aspirator hose (A).
InstallationInstall in the reverse order of removal.
