Solar Sensor: Service and Repair
Sunload Sensor (auto A/C Model)RemovalDisconnect the ground cable from battery.
Remove the front defroster grille.

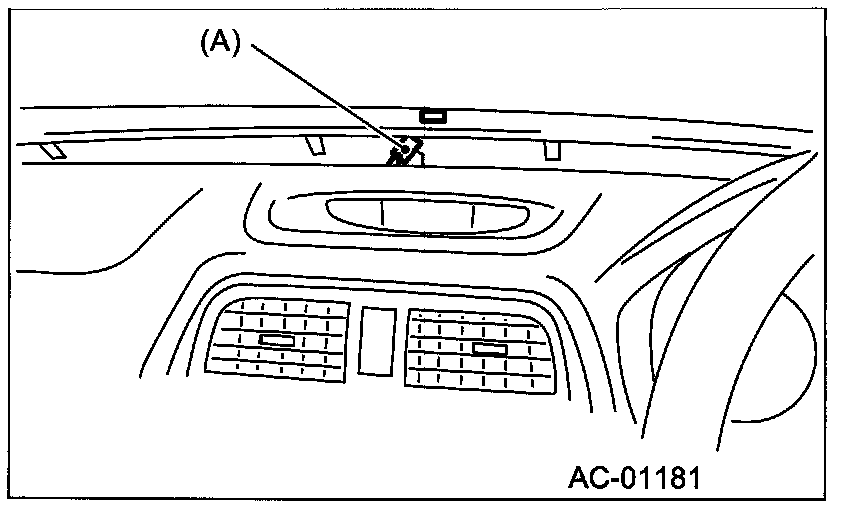

Disconnect the sunload sensor connector (A).
IMPORTANT: Be careful not to damage the sensors and interior trims when removing them.
InstallationInstall in the reverse order of removal.
