Compartment Temperature Does Not Change



Compartment Temperature Does Not Change, Or A/C System Does Not Respond Promptly

Trouble Symptom
- Compartment temperature is not changed. (No cool air is discharged.)
- A/C system does not respond quickly.


Wiring Diagram:






Step 1 - 8:

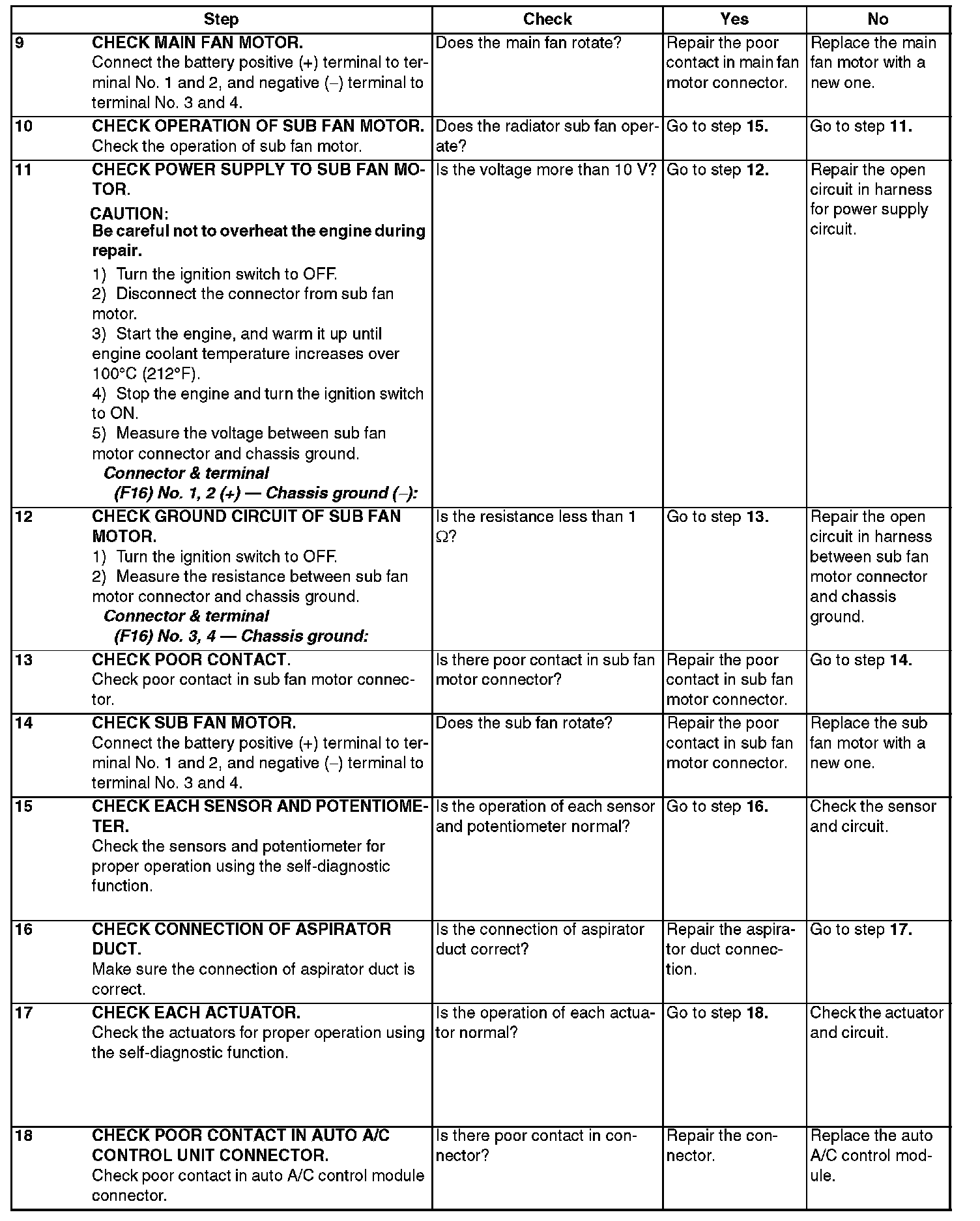

Step 9 - 18:
