Camshaft Position Sensor: Service and Repair
Camshaft Position SensorREMOVAL 1.
Disconnect the ground cable from battery.
2.

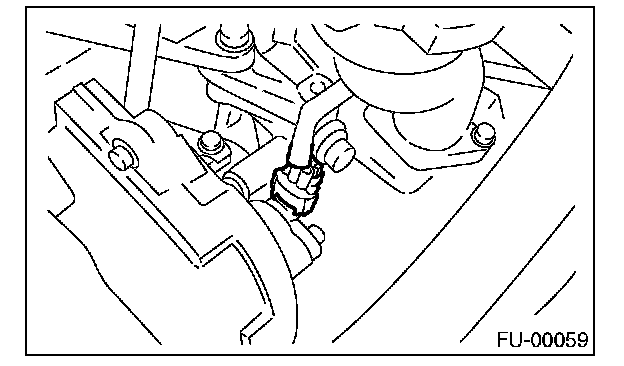

Disconnect the connector from the
camshaft position sensor.
3.

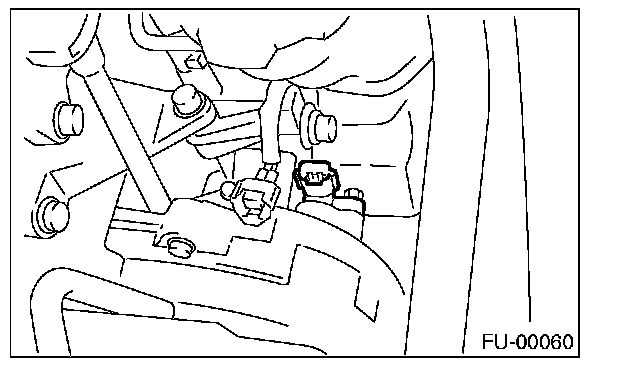

Remove the
camshaft position sensor from the camshaft support LH.

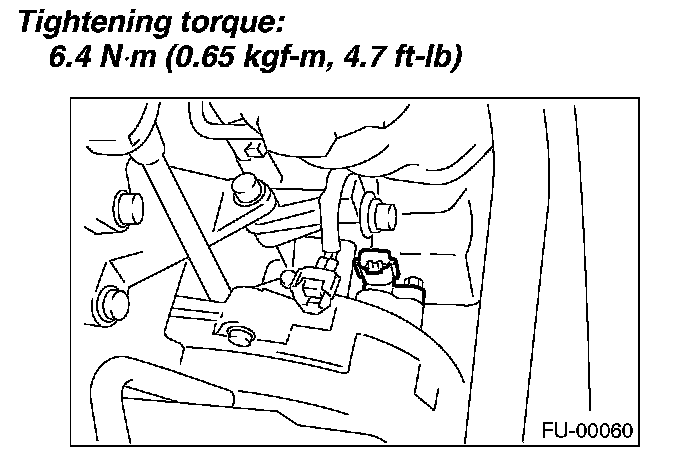

INSTALLATIONInstall in the reverse order of removal.
