Idle Speed/Throttle Actuator - Electronic: Service and Repair
Idle Air Control Solenoid ValveREMOVAL 1.

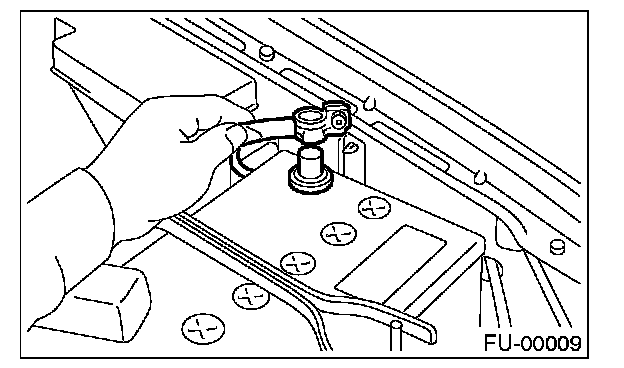

Disconnect the ground cable from battery.
2.

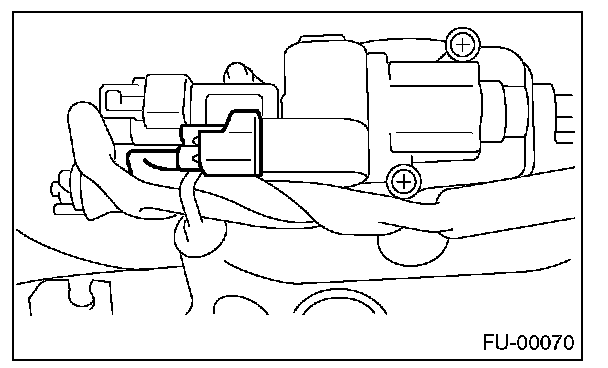

Disconnect the connector from the idle air control solenoid valve.
3.

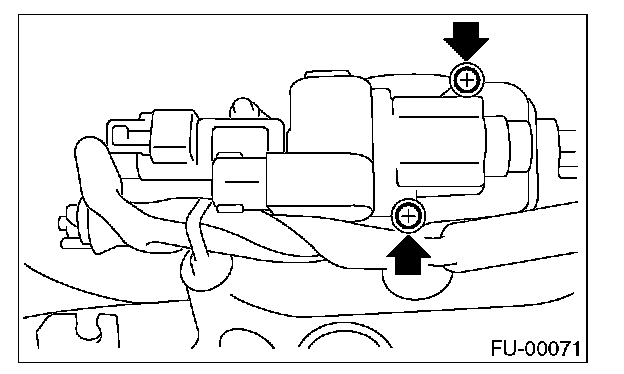

Remove the idle air control solenoid valve from the
throttle body.
4.
Remove the gasket from the
throttle body.
INSTALLATIONInstall in the reverse order of removal.
NOTE: Replace the gasket with a new one.
