Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure Sensor

REMOVAL

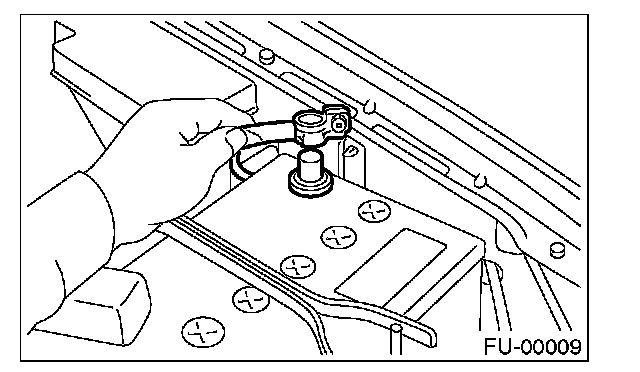

1. Disconnect the ground cable from battery.
2. Remove the idle air control solenoid valve.

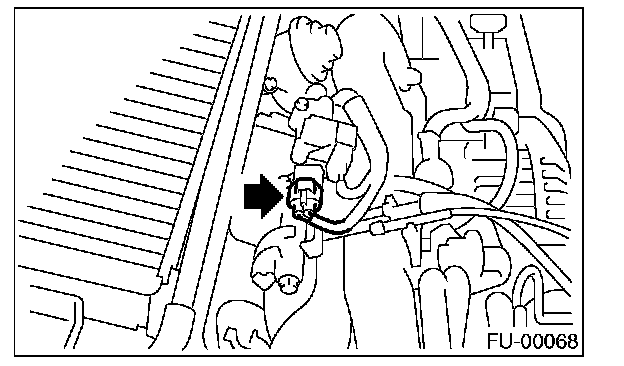

3. Disconnect the connectors from manifold absolute pressure sensor.
4. Remove the manifold absolute pressure sensor from the throttle body.

INSTALLATION
Install in the reverse order of removal.

NOTE: Replace the O-rings for the manifold absolute pressure sensor with new ones.

Tightening torque: 1.6 N.m (0.16 kgf-m, 1.2 ft-lb)
