Front Catalytic Converter

Front Catalytic Converter

REMOVAL
1. Remove the center exhaust pipe.

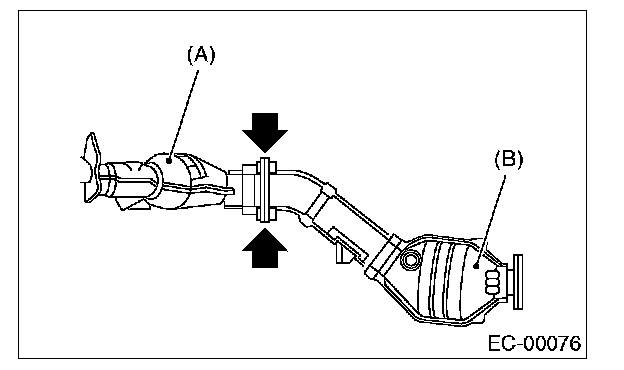

2. Separate the front catalytic converter (A) from rear catalytic converter (B).

INSTALLATION

NOTE:
- Replace the gaskets with new ones.
- Install in the reverse order of removal.
