Rear Catalytic Converter
Rear Catalytic ConverterREMOVAL 1.
Remove the center
exhaust pipe.
2.

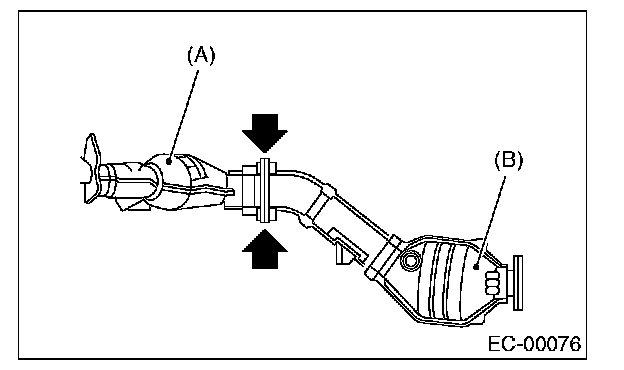

Separate the rear
catalytic converter (B) from front catalytic converter (A).
INSTALLATIONNOTE: -
Replace the gaskets with new ones.
-
Install in the reverse order of removal.
