Procedures

DRAINING FUEL

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill the fuel.

1. Set the vehicle on a lift.

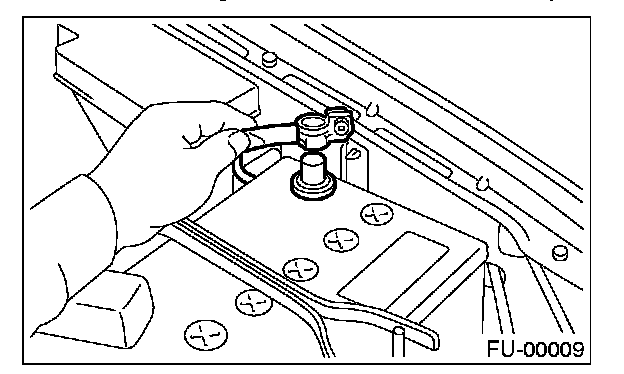

2. Disconnect the ground cable from battery.
3. Open the fuel filler flap lid, and then remove the fuel filler cap.
4. Lift up the vehicle.

5. Drain the fuel from the fuel tank.

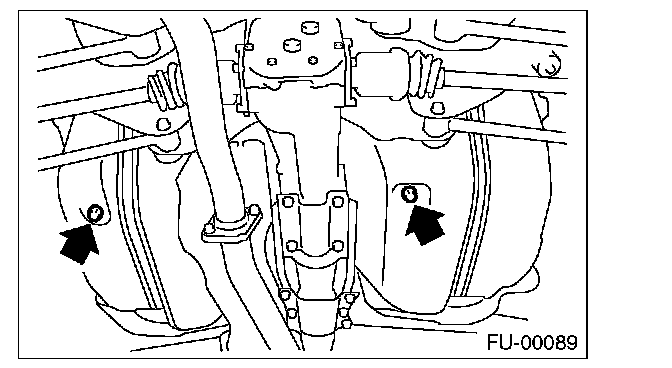

Set a container under the vehicle and remove the drain plug from the fuel tank.

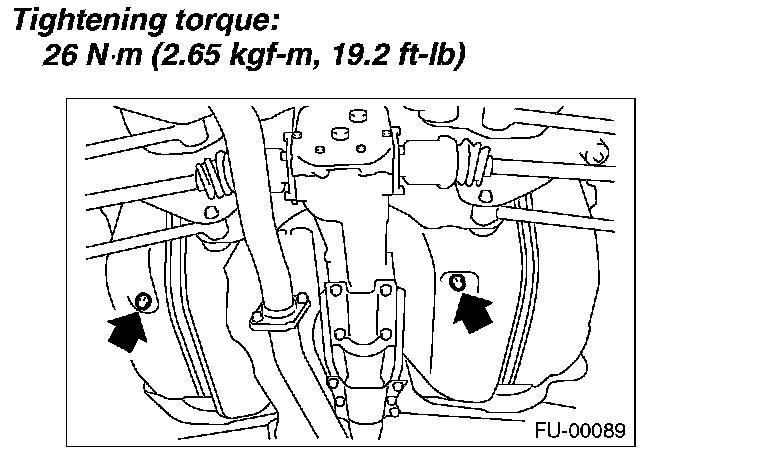

6. Tighten the fuel drain plug.
