Air Bag Systems: Adjustments

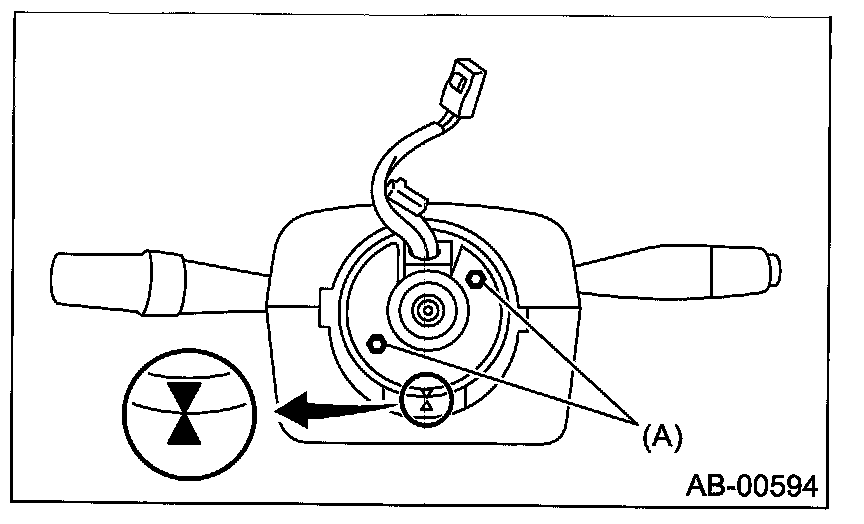

Roll ConnectorAdjustmentCheck that the front wheels are positioned in straight ahead direction.
Turn the roll connector pin (A) clockwise until it stops.
Turn the roll connector pin (A) counterclockwise approx. 2.65 turns until the marks are aligned.
