Front Sub Sensor

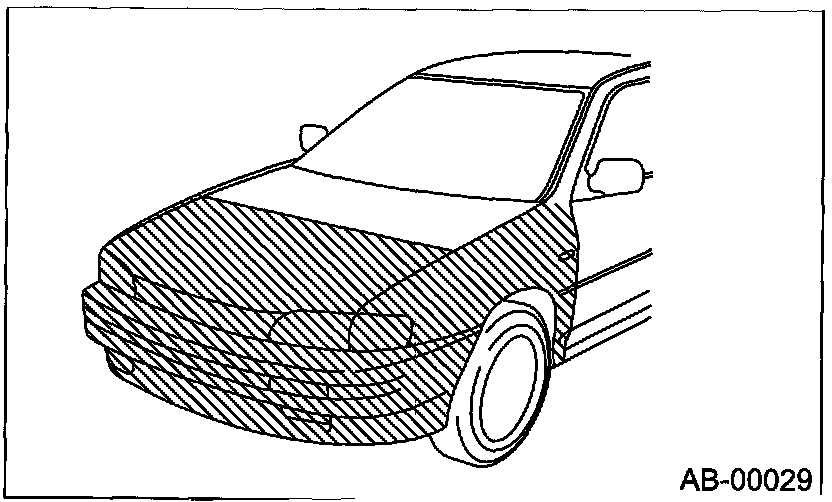

InspectionIf the front section of vehicle as shown in the figure is damaged, check for the following, and replace damaged parts with new parts.
-
Front sub sensor is cracked or deformed.
-
Mounting bracket is cracked or deformed.
-
Connector is scratched, cracked or deformed.
-
Airbag is deployed.
