Service Data
General DescriptionSPECIFICATIONWheel And Tires:

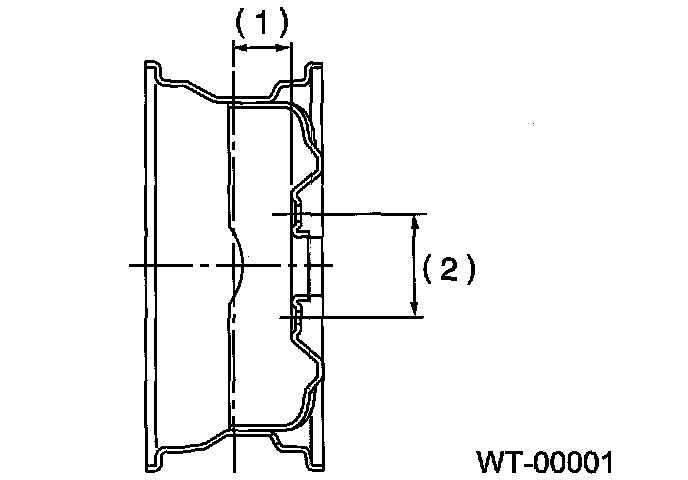

Wheel and Tire SizeAdjusting (Part 6):
(1) Offset
(2) P.C.D.
Note: ^
Adjust the tire pressure to
250 kPa (2.5 kgf/cm2, 36 psi) when running at more than
160 km/h (99.4 MPH) with 5 persons and load.
^
"T-type" tire for temporary use is supplied as a
spare tire.

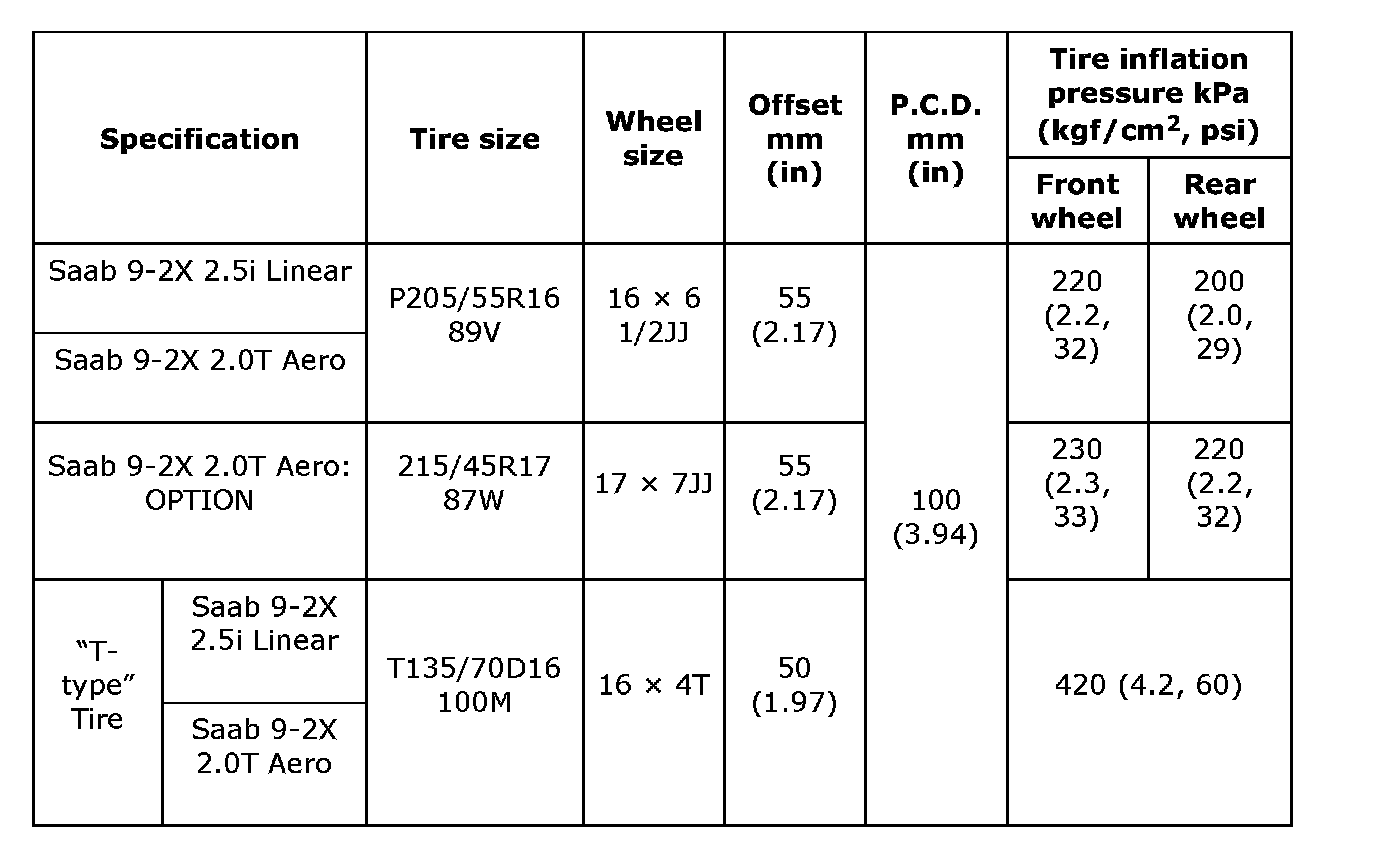

SERVICE DATAService Data:
