Case: Service and Repair

Air Breather Hose

REMOVAL
1. Remove the air intake chamber. (Non-turbo model)
2. Remove intercooler. (Turbo model)
3. Disconnect the air breather hoses.

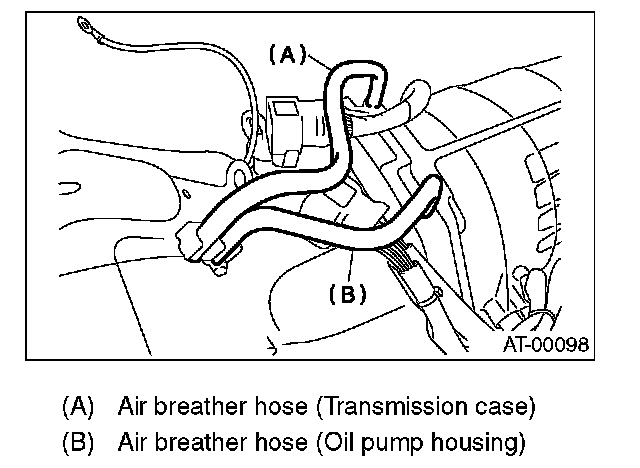

^ Non-turbo model

Non-turbo model:

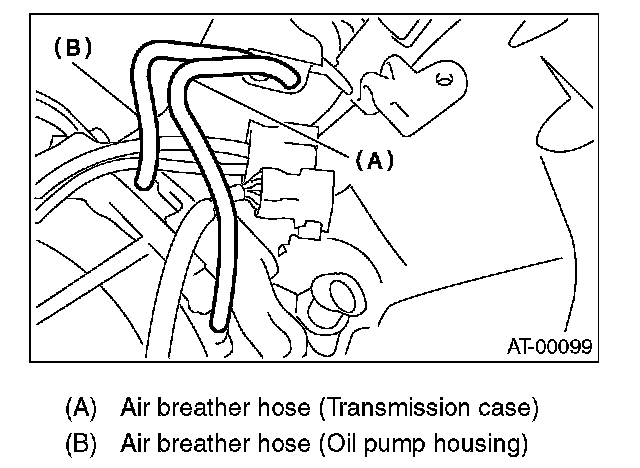

^ Turbo model

Turbo model:

INSTALLATION
1. Install air breather hoses.

NOTE:
Install so that the hose is not folded over, excessively bent, or twisted.

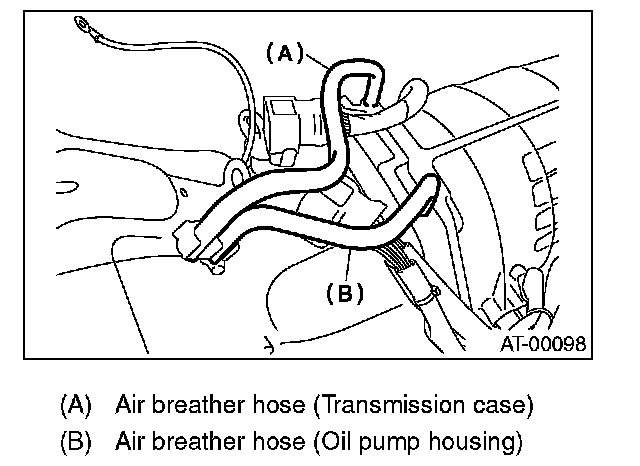

^ Non-turbo model

Non-turbo model:

^ Turbo model

Turbo model:

2. Install the air intake chamber. (Non-turbo model)
3. Install intercooler. (Turbo model)

INSPECTION
Make sure the hose is not cracked or clogged.
