Rear Vehicle Speed Sensor
Rear Vehicle Speed SensorREMOVAL
VTD MODEL
When removing the rear vehicle speed sensor, refer to Front Vehicle Speed Sensor.
MPT MODEL
Set the vehicle on a lift, and then lift-up the vehicle.

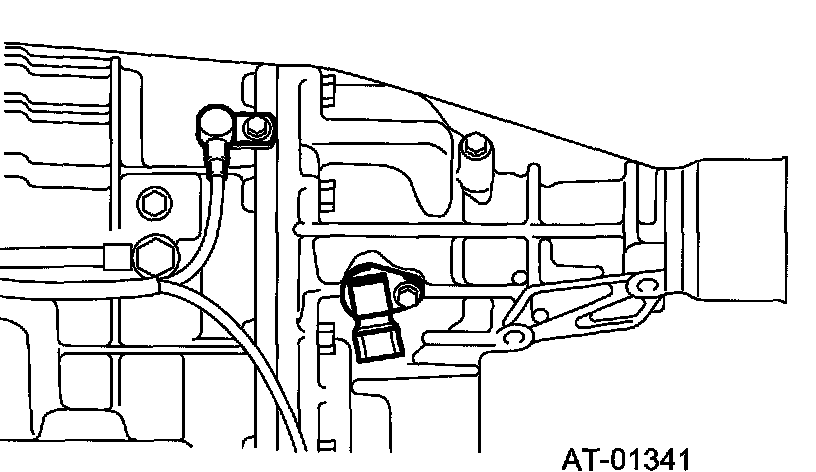

Disconnect the connector from rear vehicle speed sensor.

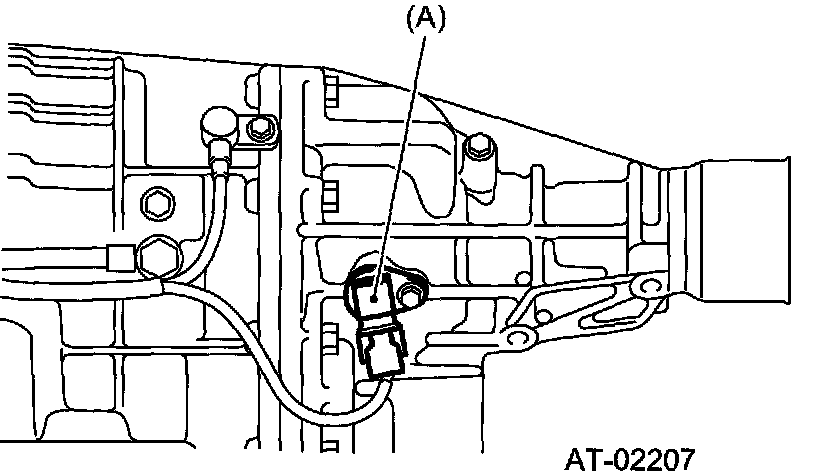

(A) Rear vehicle speed sensor
Remove the rear vehicle speed sensor.
INSTALLATION
VTD MODEL
When installing the rear vehicle speed sensor, refer to Front Vehicle Speed Sensor.
MPT MODEL
Install in the reverse order of removal.
Note: Replace with a new O-rings
Tightening torque: 7 Nm (0.7 kgf-m, 5.1 ft. lbs.)
