Differential Mount: Service and Repair
Rear Differential MemberREMOVAL
When removing the differential front member, work the removal procedure as rear differential.
INSTALLATION
1. Position the differential front member on body by passing it under the parking brake cable and securing to rear differential.
NOTE:
When installing the differential front member, do not confuse the installation sequence of the stopper.

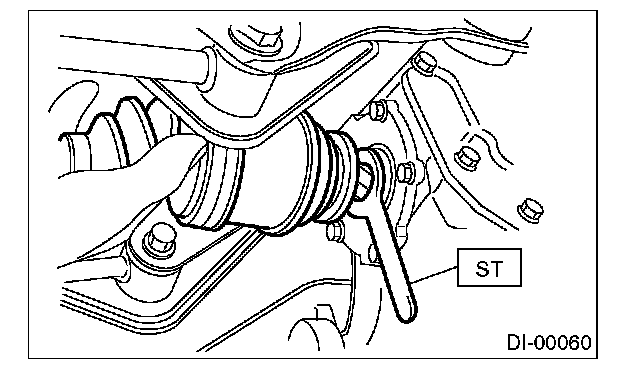

2. Insert the DOJ of rear drive shaft into rear differential.
NOTE:
Before inserting, replace the differential side oil seal with a new one.
ST 28099PA090 OIL SEAL PROTECTOR
3. Hereafter, install in the reverse order of removal.
INSPECTION
1. Check the rear differential member for damage, bend, or corrosion.
If damage, bend, or corrosion is excessive, replace the rear differential member.
2. Check the bushings of rear differential member for cracking, hardening, or damage.
If cracking, hardening, or damage is excessive, replace the rear differential member.
