Installation

Rear Differential

INSTALLATION
1. Install the air breather cap tapping with a plastic hammer.

NOTE:
Be sure to install a new air breather cap.

2. Position the differential front member on body by passing it under the parking brake cable and securing to rear differential.

NOTE:
When installing the differential front member of rear differential, do not confuse the installation sequence of the upper and lower stoppers.

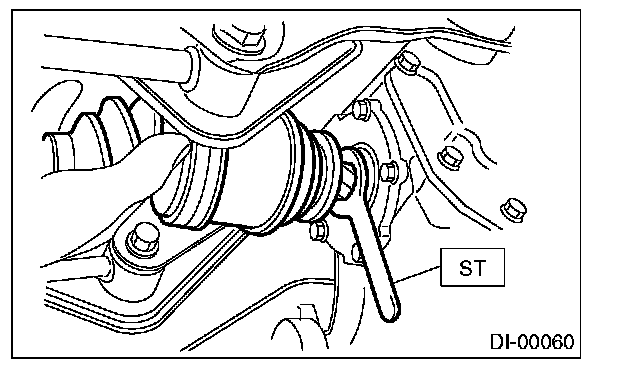

3. Install the DOJ of drive shaft into rear differential.
ST 28099PA090 OIL SEAL PROTECTOR





4. Installing procedure hereafter is in the reverse order of removal.
5. After installation, fill the differential carrier with gear oil to the filler plug level.
