Front Door Window Motor: Service and Repair

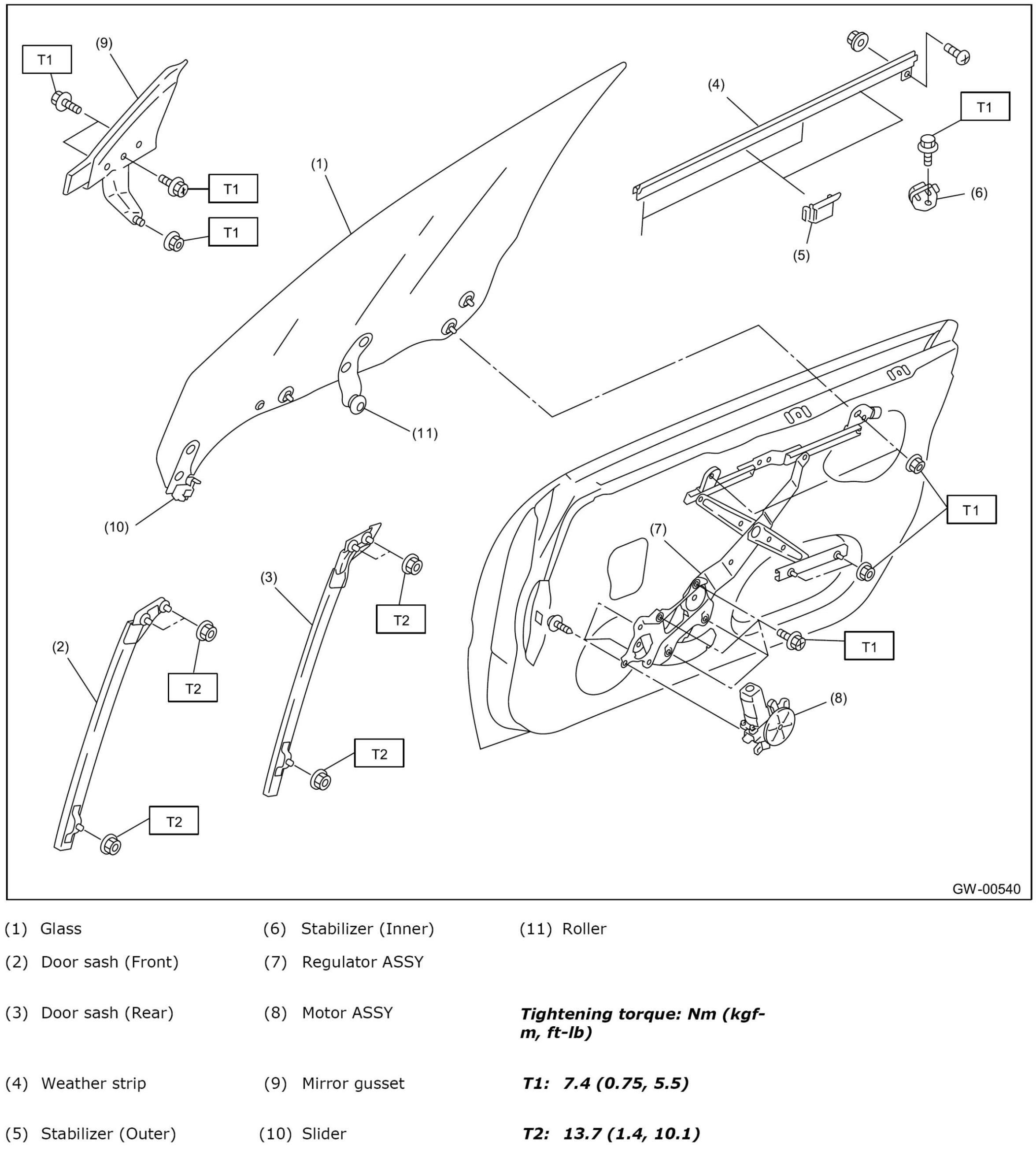

Front Door Glass:






REMOVAL

Remove the door glass.
Loosen the nuts to remove the rear sash.







Disconnect the motor connector.

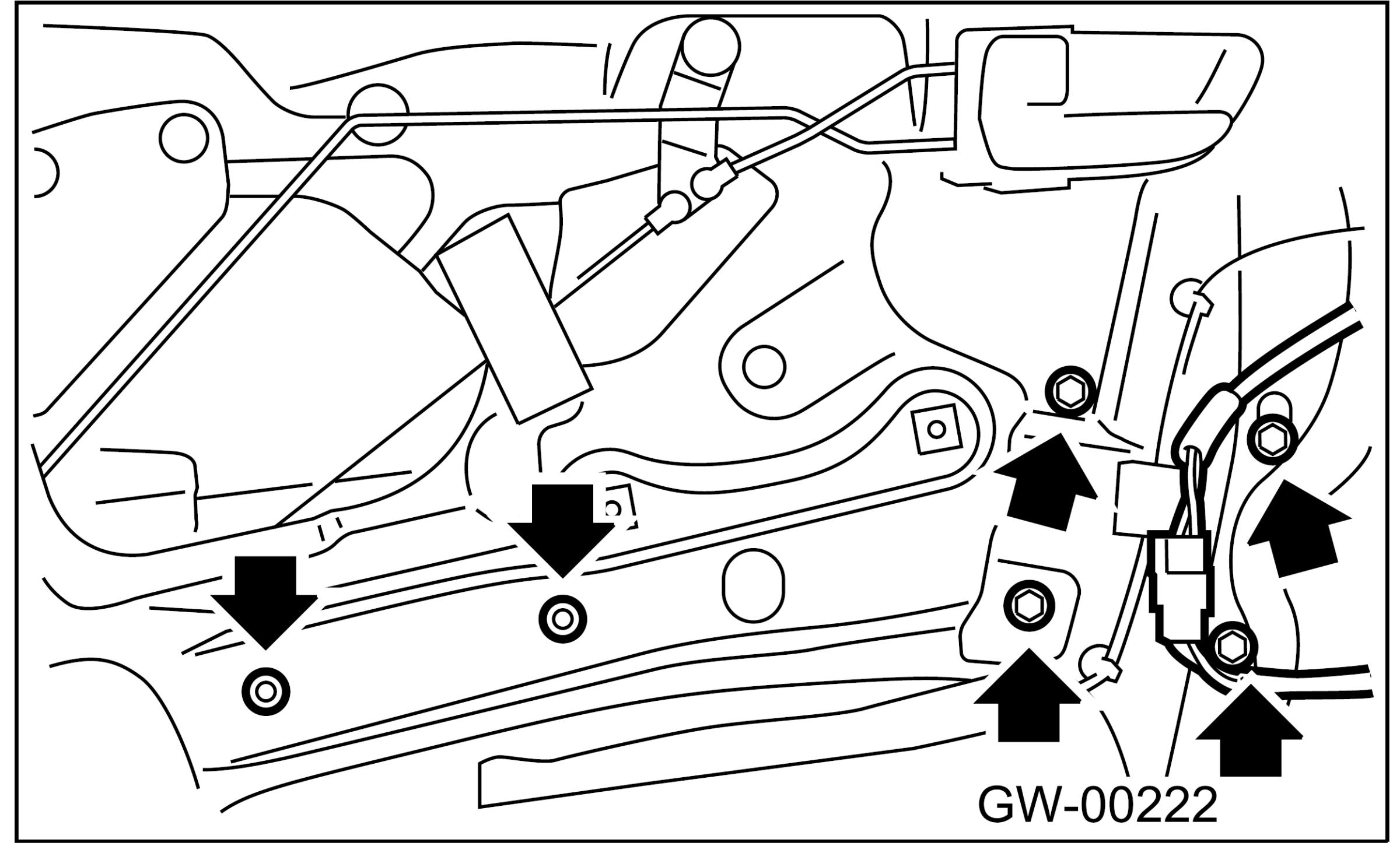

Loosen the four bolts and two nuts to remove the regulator assembly.

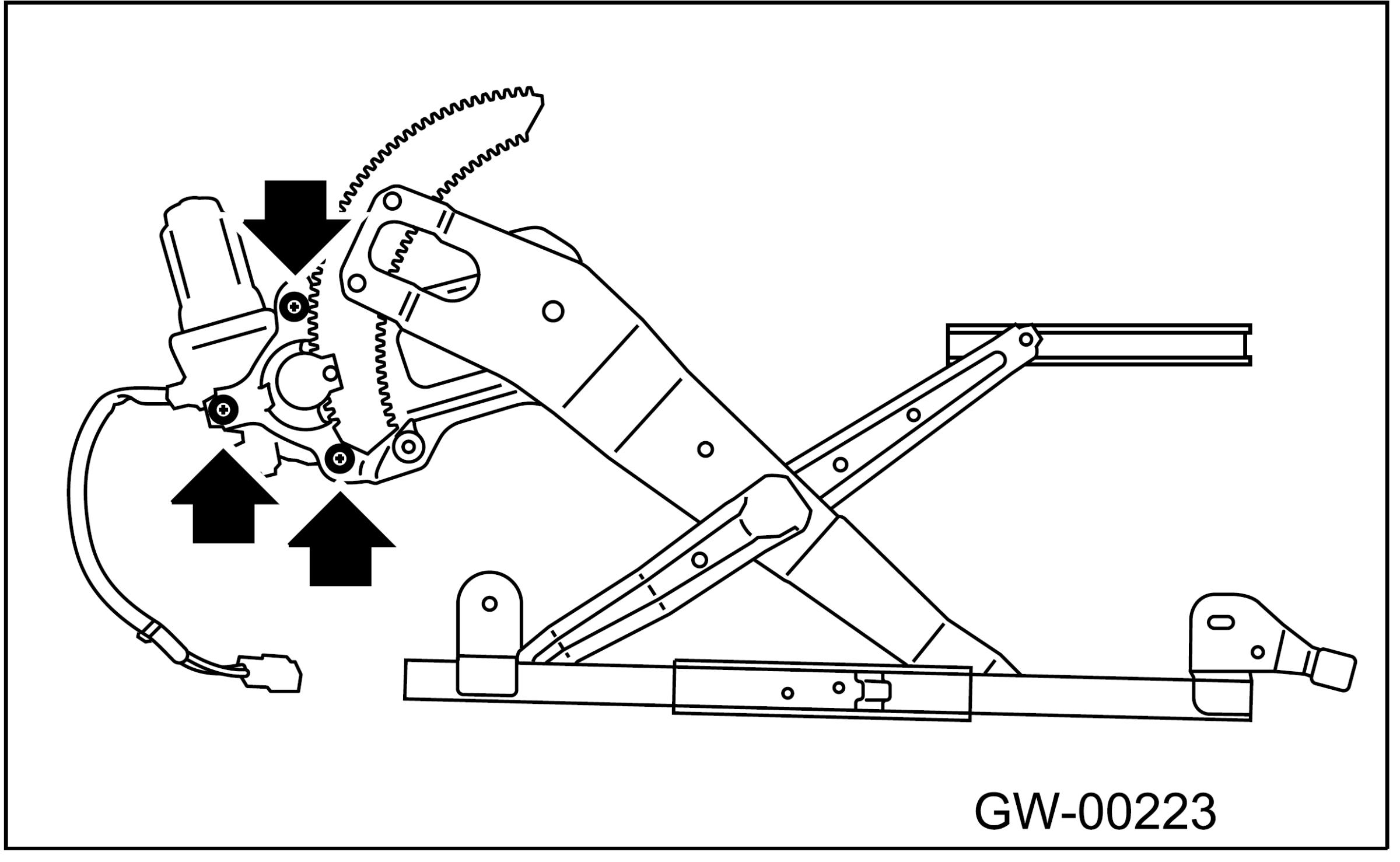

Loosen the screw to remove motor assembly.







INSTALLATION

Install in the reverse order of removal.
Adjust the front door glass.

INSPECTION

Make sure the power window motor rotates properly when battery voltage is applied to the terminals of motor connector.
Change polarity of battery connections to terminals to ensure the motor rotates in reverse direction.
