Rear Door Window Regulator: Service and Repair

Rear Regulator and Motor Assembly

Remove

Remove the rear door glass.
Remove the front sash.
Disconnect the motor connector.

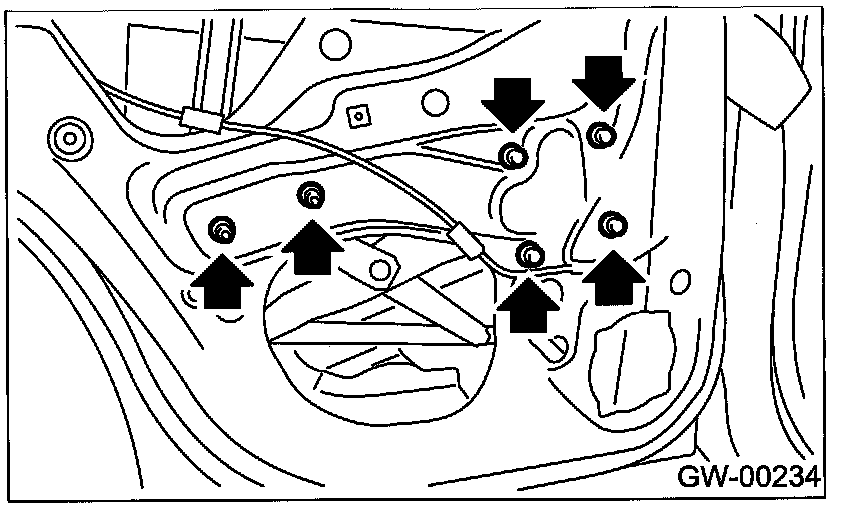

Remove the four bolts and two nuts to remove regulator assembly.

Remove the screws to remove motor assembly.

Installation
Install in the reverse order of removal.
Adjust the rear door glass.

Tightening torque:
T1: 7.4 Nm (0.75 kgf-m, 5.5 ft-lb)
T2: 13.7 Nm (1.4 kgf-m, 10.1 ft-lb)
