Leak Detection Solenoid: Service and Repair
Pressure Control Solenoid ValveREMOVAL
1. Set the vehicle on a lift.
2. Disconnect the ground cable from battery.
3. Lift up the vehicle.
4. Remove the canister.

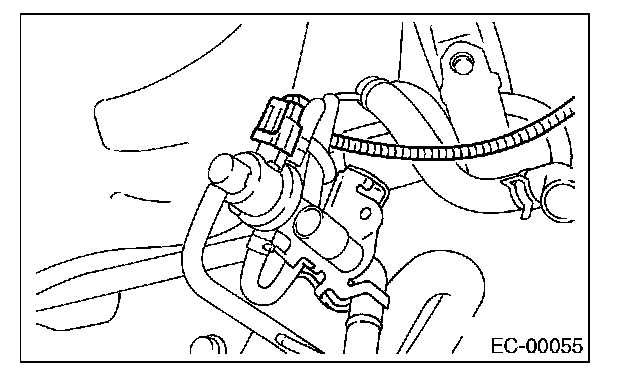

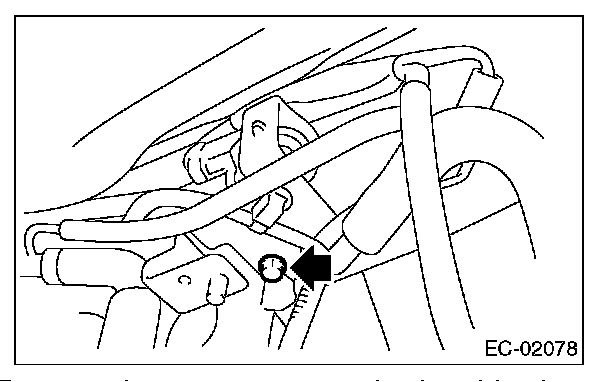

5. Remove the bolt which installs the pressure control solenoid valve holding bracket on body.
6. Remove the pressure control solenoid valve with bracket.
7. Disconnect the connector from pressure control solenoid valve.

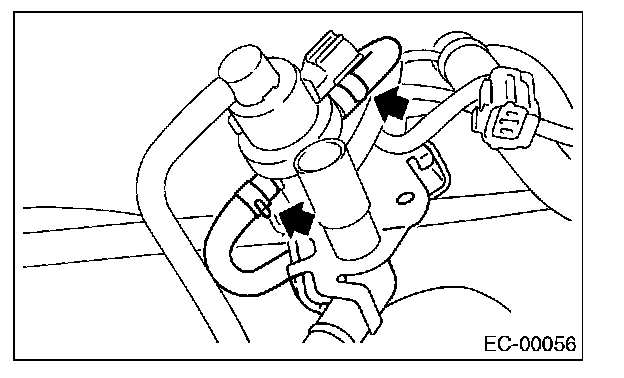

8. Disconnect the two evaporation hoses from pressure control solenoid valve.

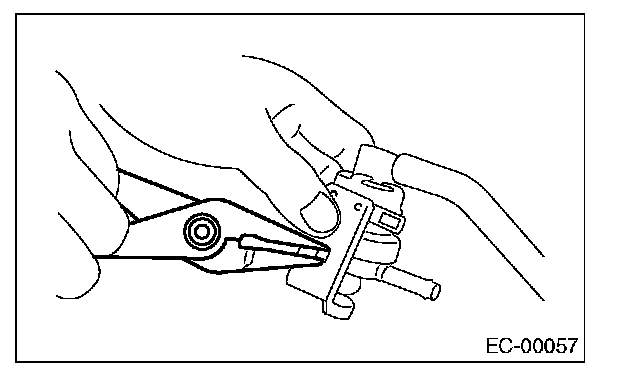

9. Remove the pressure control solenoid valve from bracket.

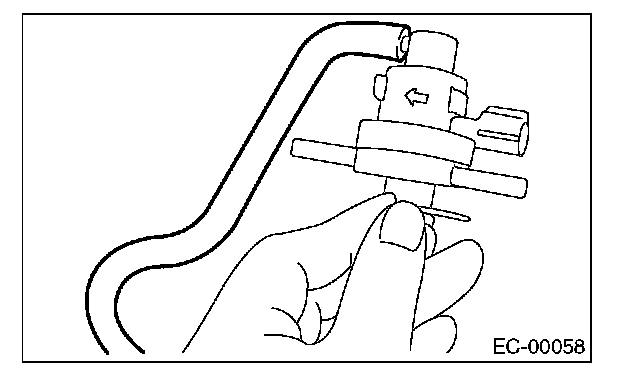

10. Disconnect the pressure control valve hose from pressure control solenoid valve.
INSTALLATION

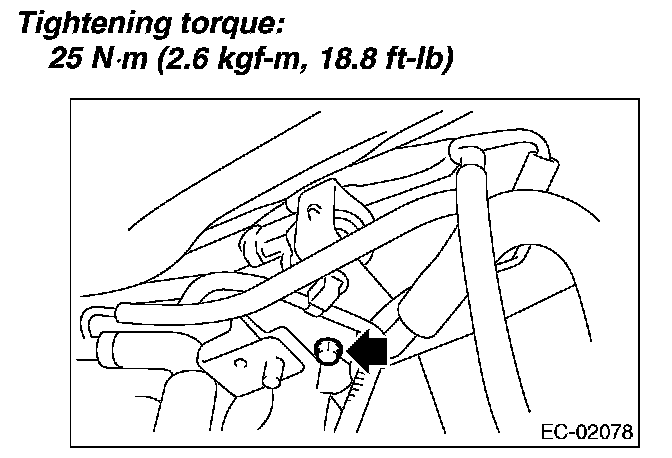

Install in the reverse order of removal.
