Resonator: Service and Repair

Resonator Chamber

REMOVAL
1. Set the vehicle on a lift.
2. Remove the air intake duct.
3. Remove the air cleaner lower case.

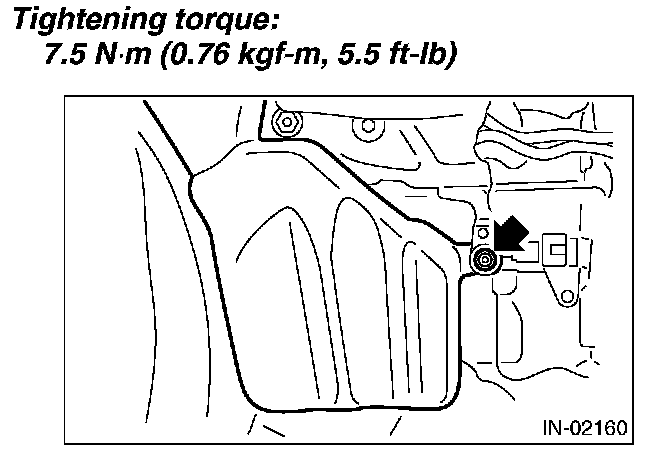

4. Remove the resonator chamber mounting nut on right side of engine compartment.
5. Remove the front wheel RH, and lift up the vehicle.
6. Remove the front mud guard RH.

7. Remove the resonator chamber from the inside front fender.

INSTALLATION
Install in the reverse order of removal.
