Home >> Saab >> 2006 >> 9-2X F4-2.5L >> Repair and Diagnosis >> Maintenance >> Fuses and Circuit Breakers >> Fuse Block >> Locations

Fuse Block: Locations

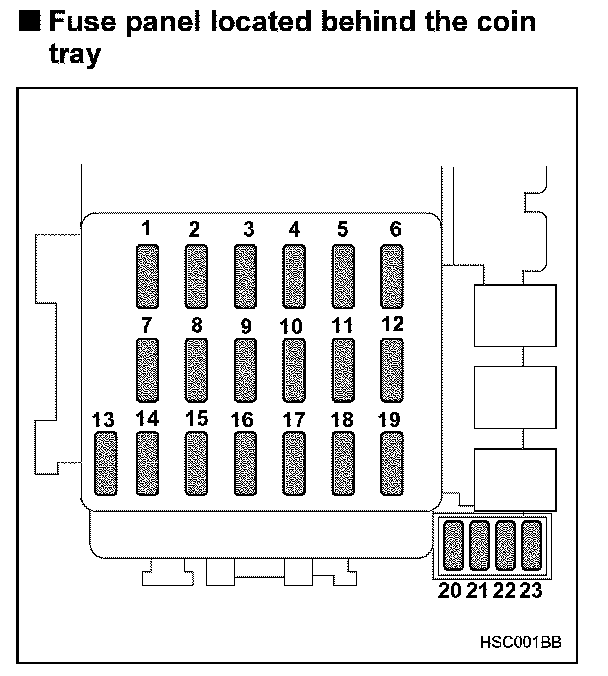

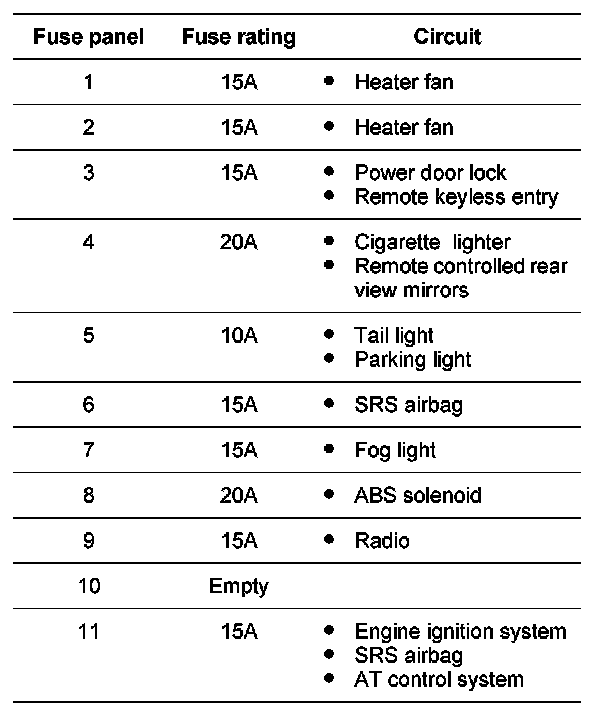

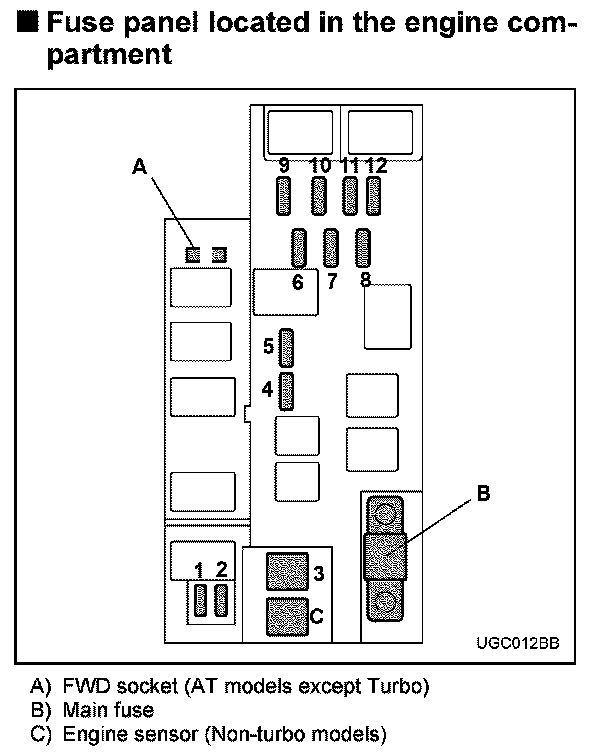

Fuse Locations
