Home >> Saab >> 2007 >> 9-5 (9600) L4-2.3L Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Locations >> Connector Locations >> Control Module Connectors (by Number) >> Control Module, ACC (216) (K40)

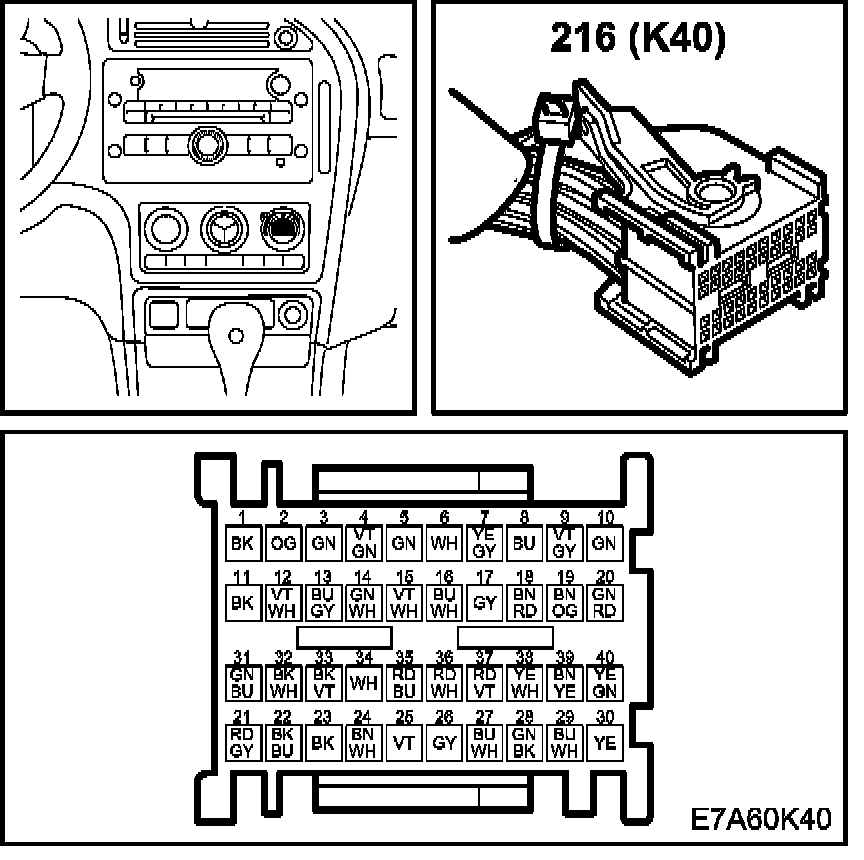

Control Module, ACC (216) (K40)

Control Module, ACC (216) (K40):
