Rear Number 1 Seat Back Release Latch Replacement

Rear Number 1 Seat Back Release Latch Replacement

Removal Procedure

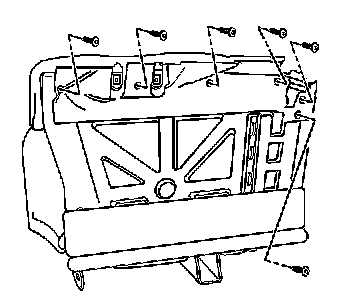

1. Remove the seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Rear Seat Back Cushion Cover and Pad Replacement).

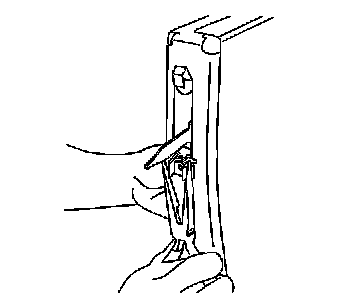

2. Remove the release latch by pinching the lower locking tabs together.




3. Remove the release cable from the release latch.

Installation Procedure




1. Install the release cable to the release latch.




2. Install the release latch to the seat frame by pressing the latch into the seat frame until the locking tabs are fully engaged.
3. Install the seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (Rear Seat Back Cushion Cover and Pad Replacement).
