Symptoms - Vibration Diagnosis and Correction



Symptoms - Vibration Diagnosis and Correction

Important: Perform the following steps in sequence BEFORE using these symptom tables.


1. Begin the diagnosis of a vibration concern by reviewing Diagnostic Starting Point - Vibration Diagnosis and Correction (Diagnostic Starting Point - Vibration Diagnosis and Correction) to become familiar with the diagnostic process used to properly diagnose vibration concerns.
2. Perform the Vibration Analysis - Road Testing (Vibration Analysis - Road Testing) table before using these symptom tables in order to duplicate and effectively diagnose the customer's concern.

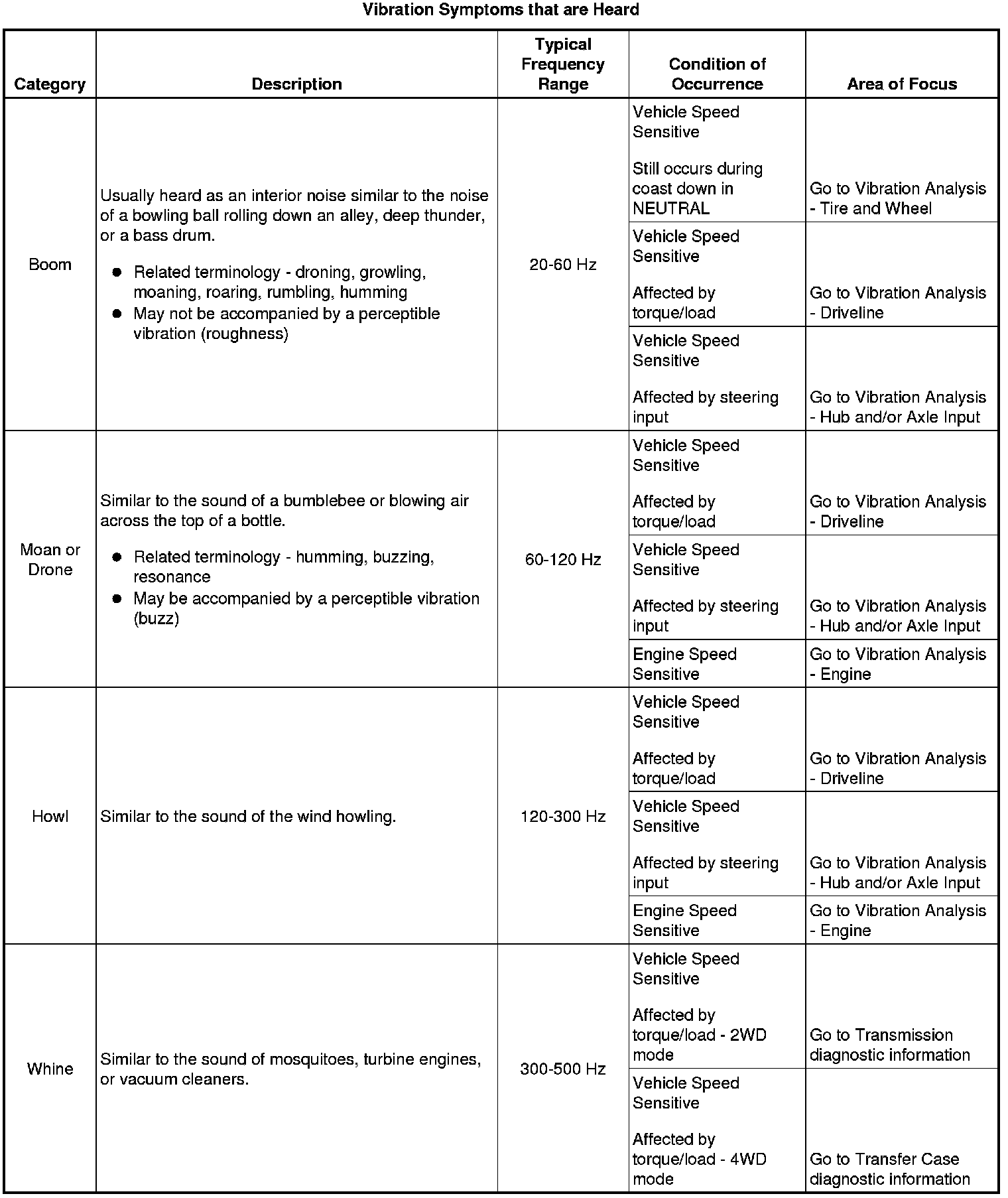

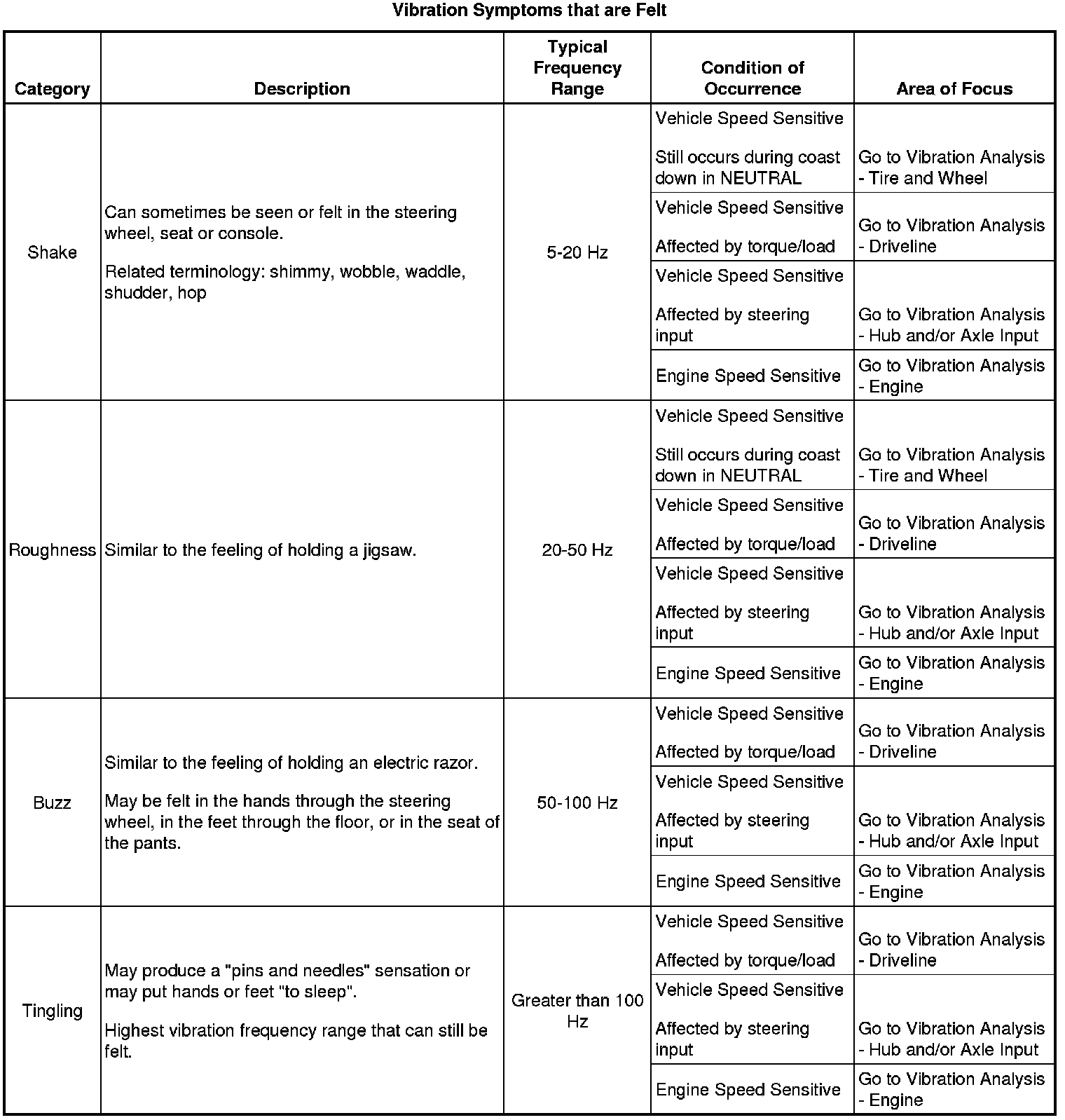

Symptom Tables

Refer to a Vibration Analysis table as indicated in the following symptom tables, based on the most dominant characteristic of the customer's vibration concern, felt or heard, that is evident during the appropriate condition of the occurrence.
