Air Delivery Description and Operation
Air Delivery Description and Operation
The air delivery description and operation is divided into 7 areas:
* HVAC Control Components
* Air Speed
* Auxiliary Air Speed
* Air Delivery
* Auxiliary Air Delivery
* Recirculation Operation
* Automatic Operation
HVAC Control Components
HVAC Control Module
The HVAC control module is a class 2 device that interfaces between the operator and the HVAC system to maintain air temperature and distribution settings. The battery positive voltage circuit provides power that the control module uses for keep alive memory (KAM). If the battery positive voltage circuit loses power, all HVAC DTCs and settings will be erased from KAM. The body control module (BCM), which is the vehicle mode master, provides a device on signal. The control module supports the following features:

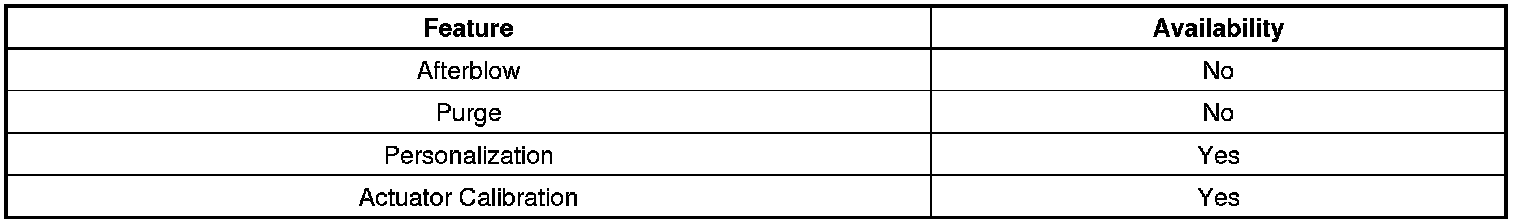

Auxiliary HVAC Control Module - VIN 6
The auxiliary HVAC control module is a class 2 device that interfaces between the rear seat occupants and the auxiliary HVAC system to maintain auxiliary air temperature and auxiliary air distribution settings. The battery positive voltage circuit provides power that the control module uses for KAM. If the battery positive voltage circuit loses power, all auxiliary HVAC DTCs and settings will be erased from KAM. The auxiliary HVAC control module will perform a recalibration of the electric actuators when commanded with a scan tool or if KAM is lost. This will ensure the actuators are moving with in the calibrated range. During this calbration process the auxiliary blower motor will be disabled for up to 3 minutes.
Defrost Actuator
The defrost actuator is a 5-wire bi-directional electric motor that incorporates a feedback potentiometer. Ignition 3 voltage, low reference, control, 5-volt reference and position signal circuits enable the actuator to operate. The control circuit uses either a 0, 2.5 or 5-volt signal to command the actuator movement. When the actuator is at rest, the control circuit value is 2.5 volts. A 0 or 5-volt control signal commands the actuator movement in opposite directions. When the actuator shaft rotates, the potentiometer's adjustable contact changes the door position signal between 0-5 volts.
The HVAC control module uses a range of 0-255 counts to index the actuator position. The door position signal voltage is converted to a 0-255 count range. When the module sets a commanded, or targeted, value, the control signal is changed to either 0 or 5 volts depending upon the direction that the actuator needs to rotate to reach the commanded value. As the actuator shaft rotates the changing position signal is sent to the module. Once the position signal and the commanded value are the same, the module changes the control signal to 2.5 volts.
Mode Actuator
The mode actuator is a 5-wire bi-directional electric motor that incorporates a feedback potentiometer. Ignition 3 voltage, low reference, control, 5-volt reference and position signal circuits enable the actuator to operate. The control circuit uses either a 0, 2.5 or 5-volt signal to command the actuator movement. When the actuator is at rest, the control circuit value is 2.5 volts. A 0 or 5-volt control signal commands the actuator movement in opposite directions. When the actuator shaft rotates, the potentiometer's adjustable contact changes the door position signal between 0-5 volts.
The HVAC control module uses a range of 0-255 counts to index the actuator position. The door position signal voltage is converted to a 0-255 count range. When the module sets a commanded, or targeted, value, the control signal is changed to either 0 or 5 volts depending upon the direction that the actuator needs to rotate to reach the commanded value. As the actuator shaft rotates the changing position signal is sent to the module. Once the position signal and the commanded value are the same, the module changes the control signal to 2.5 volts.
Auxiliary Mode Actuator - VIN 6
The auxiliary mode actuator is a 5-wire bi-directional electric motor that incorporates a feedback potentiometer. Low reference, 5-volt reference, position signal, and 2 control circuits enable the actuator to operate. The control circuits use either a 0 or 12 volt value to coordinate the actuator movement. When the actuator is at rest, both control circuits have a value of 0 volts. In order to move the actuator, the auxiliary HVAC control module grounds one of the control circuits while providing the other with 12 volts. The control module reverses the polarity of the control circuits to move the actuator in the opposite direction. When the actuator shaft rotates, the potentiometer's adjustable contact changes the door position signal between 0-5 volts.
The auxiliary HVAC control module uses a range of 0-255 counts to index the actuator position. The door position signal voltage is converted to a 0-255 count range. When the module sets a commanded, or targeted, value, one of the control circuits is grounded. As the actuator shaft rotates the changing position signal is sent to the module. Once the position signal and the commanded value are the same, the module grounds both control circuits.
Auxiliary Console Mode Actuator
The auxiliary console mode actuator is a 5-wire bi-directional electric motor that incorporates a feedback potentiometer. Low reference, 5-volt reference, position signal, and 2 control circuits enable the actuator to operate. The control circuits use either a 0 or 12 volt value to co-ordinate the actuator movement. When the actuator is at rest, both control circuits have a value of 0 volts. In order to move the actuator, the auxiliary HVAC control module grounds one of the control circuits while providing the other with 12 volts. The control module reverses the polarity of the control circuits to move the actuator in the opposite direction. When the actuator shaft rotates, the potentiometer's adjustable contact changes the door position signal between 0-5 volts.
The auxiliary HVAC control module uses a range of 0-255 counts to index the actuator position. The door position signal voltage is converted to a 0-255 count range. When the module sets a commanded, or targeted, value, one of the control circuits is grounded. As the actuator shaft rotates the changing position signal is sent to the module. Once the position signal and the commanded value are the same, the module grounds both control circuits.
Blower Motor Control Processor
The blower motor control processor controls the speed of the blower motor by increasing or decreasing the voltage drop on the ground side of the blower motor. The HVAC control module provides a low side pulse width modulated signal to the blower motor control processor over the blower motor speed control circuit. As the requested blower speed increases, the HVAC control module increases the amount of time that the speed signal is modulated to ground. As the requested blower speed decreases, the HVAC control module decreases the amount of time that the signal is modulated to ground.
Air Speed - Front Control
The blower control switch is integrated into the HVAC control module. The 2 rocker type switches provide the vehicle operator the ability to select several blower speeds. The HVAC control module uses a bar graph type display to indicate the selected blower speed. The HVAC control module provides a pulse width modulated (PWM) signal to the blower motor through the blower motor speed control circuit. The blower motor changes speed based on the received PWM signal from the HVAC control module. Power and ground are provided to the blower motor through the battery positive voltage and ground circuits. When the HVAC control module is operating in AUTO mode, the system automatically controls the blower speed. Power and ground are provided to the HVAC control module by the ignition 3 voltage and the ground circuits.
Air Speed - Auxiliary - VIN 6
There are 2 separate controls for the auxiliary HVAC system. There is the front auxiliary blower motor switch and the auxiliary HVAC control module. If the front auxiliary blower motor switch is in any other position than OFF or REAR, then the auxiliary air temperature actuator mimics the set passenger temperature. The auxiliary mode will mimic the primary mode. If the front auxiliary blower motor switch is in the REAR position, then the system will only function with inputs to the auxiliary HVAC control module. If the front auxiliary blower motor switch is in the OFF position, then the auxiliary HVAC control module does not respond to input. The auxiliary HVAC control module can not request A/C operation from the PCM. The 2 rocker type switches on the auxiliary HVAC control module provide the operator the ability to select several blower speeds. The auxiliary HVAC control module uses a bar graph type display to indicate the selected blower speed. The auxiliary HVAC control module provides a pulse width modulated (PWM) signal to the auxiliary blower motor through the auxiliary blower motor speed control circuit. The auxiliary blower motor changes speed based on the received PWM signal from the auxiliary HVAC control module. Power and ground are provided to the auxiliary blower motor through the battery positive voltage and ground circuits. Power and ground are provided to the auxiliary HVAC control module by the ignition 3 voltage and the ground circuits.
Air Speed - Auxiliary - VIN 3
The auxiliary HVAC system uses an LED display for air speed. When one LED is illuminated on the auxiliary HVAC control module the air flow through the center console to the rear is provided by the primary blower motor. The air speed will vary depending on the front blower motor setting. When 2 LED's are illuminated the auxiliary blower motor is set to medium speed. When 3 LED's are illuminated the auxiliary blower motor is set to high speed. When the operator selects medium blower speed, power is delivered to the auxiliary blower motor through the auxiliary blower motor medium speed control circuit. When the operator selects high blower speed, power is delivered to the auxiliary blower motor through the auxiliary blower motor high speed control circuit. Ground is provided to the blower motor through the ground circuit. Power and ground are provided to the auxiliary HVAC control module through the ignition 3 voltage and ground circuits.
OFF Mode
Press the OFF switch to turn off the HVAC control module. When the vehicle is moving, air flowing over the vehicle increases the air pressure just ahead of the windshield. This forces air into the outside air inlet, into the HVAC module and out through the floor and windshield outlets. Since the A/C compressor is not running, the incoming air may be warmed but not cooled.
Air Distribution
The HVAC control module controls the distribution of air by the use of a defrost actuator and a mode actuator. The modes that may be selected are:
* Defrost
* Defog
* Panel
* Bi-Level
* Floor
The mode and defrost actuators are connected to the mode and defrost doors by a cam type linkage system. Depending on the position of the door, air is directed through the HVAC module and distributed through various ducts leading to the outlets in the dash. If the HVAC control module detects a fault with the mode or defrost doors the HVAC control module will try to drive the actuator for a predetermined amount of time, to defrost, which is the defaulted position for the mode and defrost door actuators. When the mode switch is placed in the defrost or defog positions the A/C is commanded on and the recirculation door is moved to the outside air position to help reduce window fogging. A/C is available in all modes and recirculation is only available in the panel and bi-level modes.
Mode Actuator
The mode actuator is an electronic stepper motor with feedback potentiometers. The HVAC control module sends signals to the mode door actuator through the mode door control circuit. Zero volts drives the actuator in one direction while 5 volts moves the actuator in the opposite direction. When the actuator receives 2.5 volts, the actuator rotation stops. A 5-volt reference signal is sent out over the 5-volt reference circuit to the mode actuator. When you select a desired mode setting, logic determines the value of the mode actuator signals. The HVAC control module's software uses this reference voltage in order to determine the position of the mode actuator through the mode door position signal circuit. The motor moves the mode door to the desired position.
Defrost Actuator
The defrost actuator operates the same as the mode actuator. The HVAC control module sends signals to the mode door actuator through the defrost door control circuit. Zero volts drives the actuator in one direction while 5 volts moves the actuator in the opposite direction. When the actuator receives 2.5 volts, the actuator rotation stops. A 5-volt reference signal is sent out over the 5-volt reference circuit to the defrost actuator. When you select a defrost setting, logic determines the value of the defrost actuator signals. The HVAC control module's software uses this reference voltage in order to determine the position of the mode actuator through the defrost door position signal circuit. The motor moves the defrost door to the desired position.
Front Defrost
When defrost is selected, the A/C compressor is activated. The A/C compressor clutch will engage when ambient temperatures are above 3°C (38°F). The blower motor will be activated, regardless of the coolant temperature. The HVAC control module will override the auxiliary HVAC control module so a high volume of air is delivered to the front defrost vents. The rear window defogger does not affect the HVAC system.
Air Distribution - Auxiliary Control VIN 3
The auxiliary HVAC system provides ventilation for the rear seat occupants. The rear seat occupants will exercise control of the auxiliary air delivery modes and air speed, while the HVAC control module will maintain control of the air temperature setting. The HVAC control module's blower motor must be ON in order for the auxiliary HVAC system to receive heated or cooled air. The HVAC control module will have the authority to override the auxiliary HVAC system and place it in the OFF mode when the primary HVAC system is placed in the front window DEFROST position. To override the auxiliary HVAC control module, a signal is delivered from the HVAC control module through the class 2 serial data circuit, to the auxiliary HVAC control module. This pause in operation will be indicated by the flashing the text OFF.
When the auxiliary mode switch is toggled, a signal is sent to the auxiliary mode actuator through the auxiliary mode door control circuit. Power and ground are supplied to the auxiliary mode actuator through the ignition 3 voltage and ground circuits.
When the HVAC control module is ON, the air that is delivered to the auxiliary HVAC system is the low auxiliary blower speed. When the operator selects medium blower speed, power is delivered to the auxiliary blower motor through the auxiliary blower motor medium speed control circuit. When the operator selects high blower speed, power is delivered to the auxiliary blower motor through the auxiliary blower motor high speed control circuit. Ground is provided to the blower motor through the ground circuit. Power and ground are provided to the auxiliary HVAC control module through the ignition 3 voltage and ground circuits.
Air Distribution - Auxiliary Control VIN 6
The auxiliary HVAC system provides ventilation for the rear seat occupants.
The auxiliary mode actuator shares a control circuit with the auxiliary air temperature actuator. If change of position is required for both actuators, then the module positions the auxiliary air temperature actuator first. All control circuits for the auxiliary actuators are at a low voltage potential until a change of position is required. The module then applies a high voltage potential to the appropriate control circuit, which will rotate the actuator.
Recirculation Operation
The HVAC control module controls the air intake through the recirculation actuator. The recirculation switch closes the recirculation door in order to circulate the air within the vehicle. The outside air switch opens the recirculation door in order to route outside air into the vehicle. Regardless of the blower motor switch position, recirculation is available only in the panel and bi-level mode switch positions. Including the OFF position. The mode switch must be placed in either the panel or bi-level position before the blower motor switch is placed in the OFF position. In order to reduce windshield fogging, outside air is circulated when the mode switch is in the defrost or defog positions. If the recirculation switch is pressed into the ON position when the mode switch is in an unavailable mode position, then the recirculation switch LED will flash 3 times. If the HVAC control module detects a fault with the recirc door the HVAC control module will try to drive the actuator for a predetermined amount of time, to outside air, which is the defaulted position for the recirculation actuator.
Automatic Operation
In automatic operation, the HVAC control module will maintain the comfort level inside of the vehicle by controlling the A/C compressor clutch, the blower motor, the air temperature actuators, mode actuator and recirculation.
To place the HVAC system in Automatic mode, the following is required:
* The Auto switch must be activated
* The air temperature switch must be in any other position other than full hot or full cold position
Once the desired temperature is reached, the blower motor, mode, recirculation and temperature actuators will automatically be adjusted to maintain the temperature selected. The HVAC control module performs the following functions to maintain the desired air temperature:
* Monitor the following sensors:
^ Inside air temperature sensor
^ Ambient Air Temperature Sensor
^ Lower Left Air Temperature Sensor
^ Lower Right Air Temperature Sensor
^ Upper Left Air Temperature Sensor
^ Upper Right Air Temperature Sensor
* Regulate blower motor speed
* Position the air temperature actuator
* Position the mode actuator
* Position the recirculation actuator
* Request A/C operation
